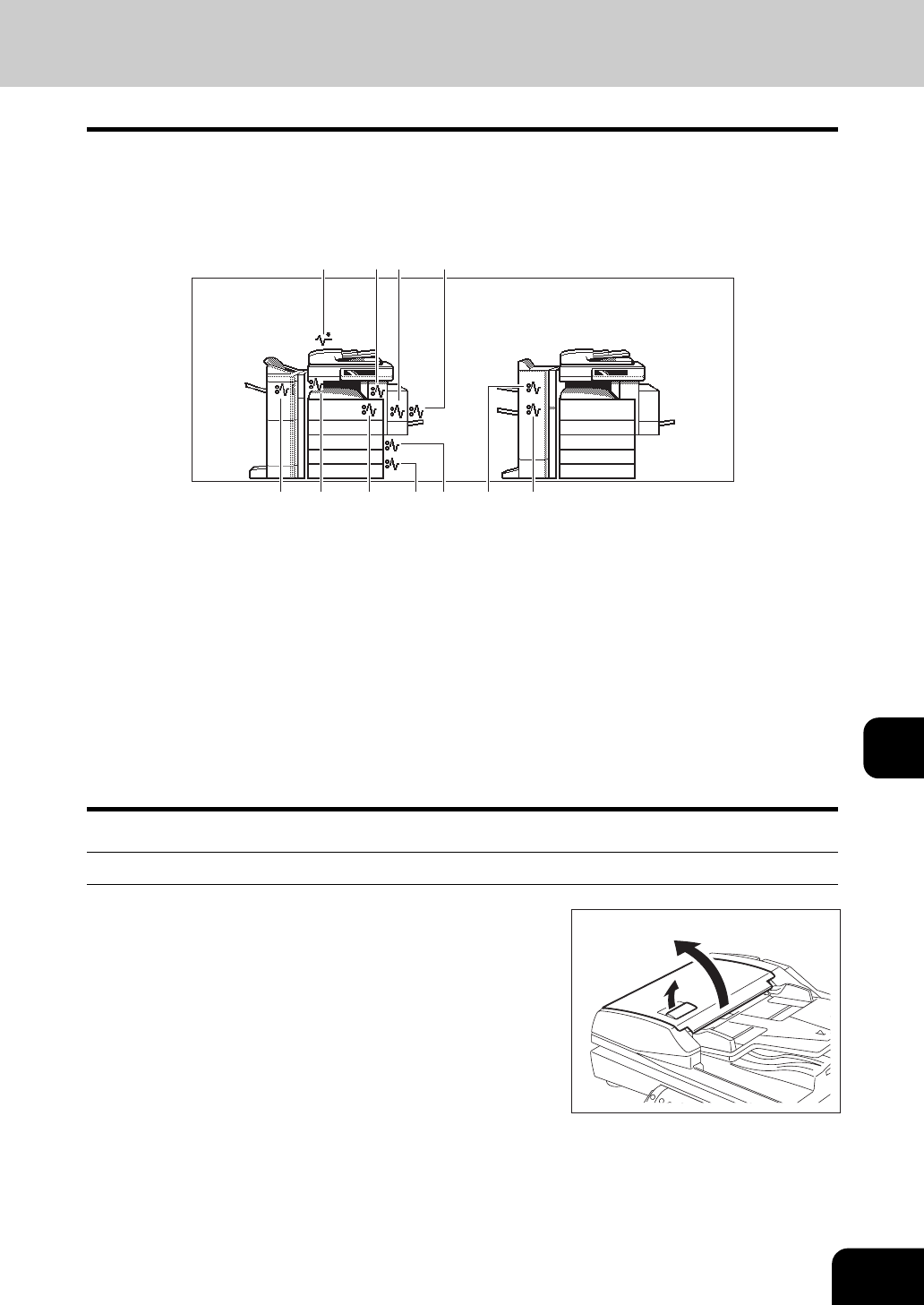

5. Jam Symbols
When a paper misfeed occurs in the equipment, the jam symbol blinks in the positions where the paper is
misfed. Follow the guidance on the touch panel to remove the misfed paper properly.
• The misfed paper may not be in the correct position as shown in the illustration depending on the tim-
ing of the misfeeding.
1. Reversing Automatic Document Feeder (optional) ( P.285)
2. Fuser Unit ( P.292)
3. Automatic Duplexing Unit ( P.291)
4. Bypass tray ( P.290)
5. Drawer feeding area ( P.288)
6. Large Capacity Feeder (optional: KD-1012) ( P.289) or
Paper Feed Pedestal (optional: KD-1011) ( P.290)
7. Jam releasing cover ( P.292)
8. Bridge Unit (optional) ( P.294)
9. Finisher (optional, MJ-1101) and Hole Punch Unit (optional: MJ-6101) ( P.295)
10. Finisher (optional, MJ-1024/1023) and Hole Punch Unit (optional: MJ-6004) ( P.301)
11. Hanging Finisher (optional: MJ-1022) ( P.302)
12. Saddle Stitch Unit of Saddle Stitch Finisher (optional) ( P.303)
Releasing a paper misfeed in the Reversing Automatic Document Feeder (optional)
1
Raise the lever, and then open the upper
cover.
1 42 3
7 129 8 56 10,11
