1-2 3COM Security Switch 6200 Hardware and Software Users Guide
Introduction
• One serial console port.
• Two redundant, hot-swappable power supplies.
• Five expansion slots for optional VPN or other security
acceleration cards.
Chassis The chassis is front rack mountable, in a standard 19 inch rack.

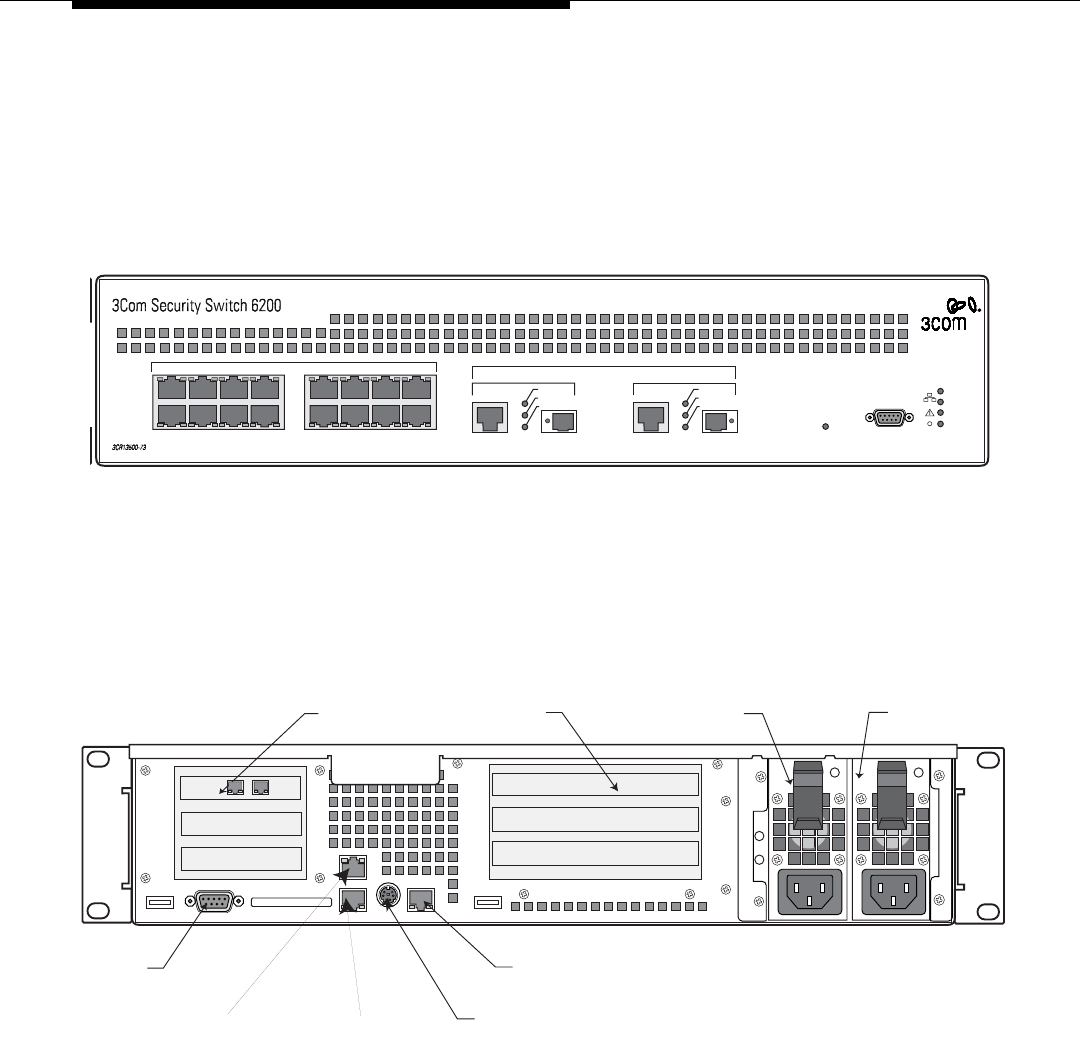

Figure 1-1 displays the 6200 system’s major components.
Figure 1-1 6200 Front View
Figure 1-2 displays the rear panel components.
NOTE: This figure is shown for reference only. The console connections
should be made from the 6200 front panel, with the management connections
taking place in the rear of the chassis.
Figure 1-2 Rear Panel Component Layout
FIBER
10/100/1000
10/100
CONSOLE
(max) 9800,8,N,1
PACKET
LINK
1357
2468
9111315
10 12 14 16
FIBER
PACKET
LINK
17
18
PWR
MGMT1
MGMT2
SYS
HDD
Primary
Power Supply
Secondary
Power Supp
ly
PCI Slots
PCI Slots
Video
Connector
Managemet
Port 2
PS/2 Mouse/Keyboard
Connector
RJ45 Serial Port
Managemet
Port 1
