Configuring the Switch
3-132
3
Adding Static Members to VLANs (Port Index)
Use the VLAN Static Membership by Port menu to assign VLAN groups to the
selected interface as a tagged member.
Command Attributes
• Interface – Port or trunk identifier.
• Member – VLANs for which the selected interface is a tagged member.
• Non-Member – VLANs for which the selected interface is not a tagged member.
Web – Open VLAN, 802.1Q VLAN, Static Membership. Select an interface from the
scroll-down box (Port or Trunk). Click Query to display membership information for
the interface. Select a VLAN ID, and then click Add to add the interface as a tagged
member, or click Remove to remove the interface. After configuring VLAN
membership for each interface, click Apply.

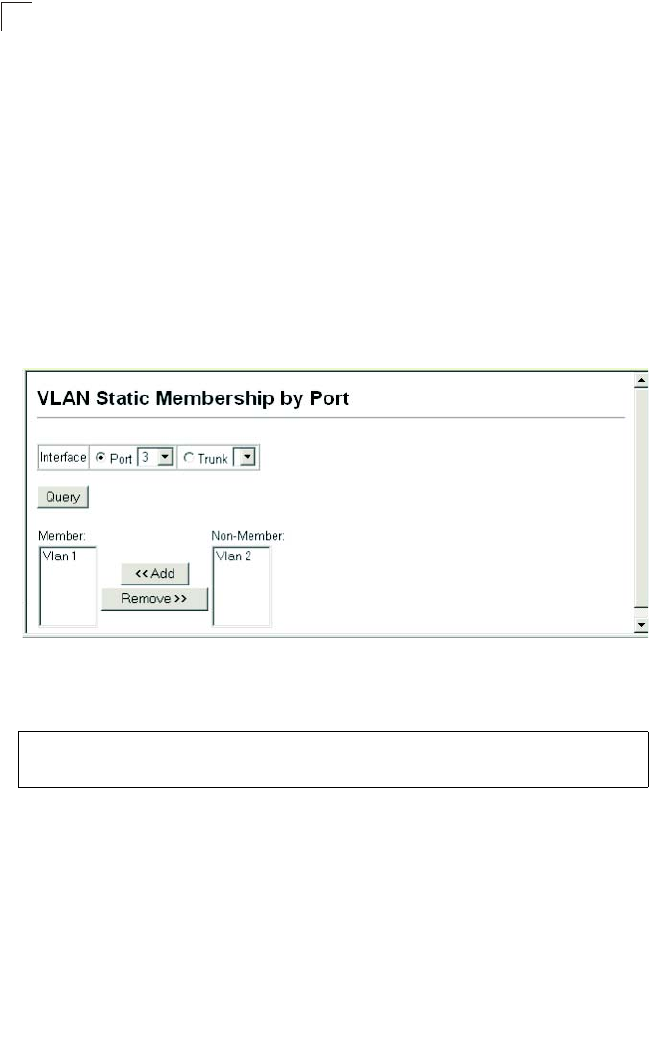

Figure 3-77. VLAN Static Membership by Port
CLI – This example adds Port 3 to VLAN 1 as a tagged port, and removes Port 3
from VLAN 2.
Console(config)#interface ethernet 1/3 4-128
Console(config-if)#switchport allowed vlan add 1 tagged 4-185
Console(config-if)#switchport allowed vlan remove 2
