Connecting Users to the AMX Switching System
Once all target devices are attached, add users by attaching user stations and peripheral devices to
the AMX switching system. Figure 2.8 illustrates how to connect users to the s
witching system.

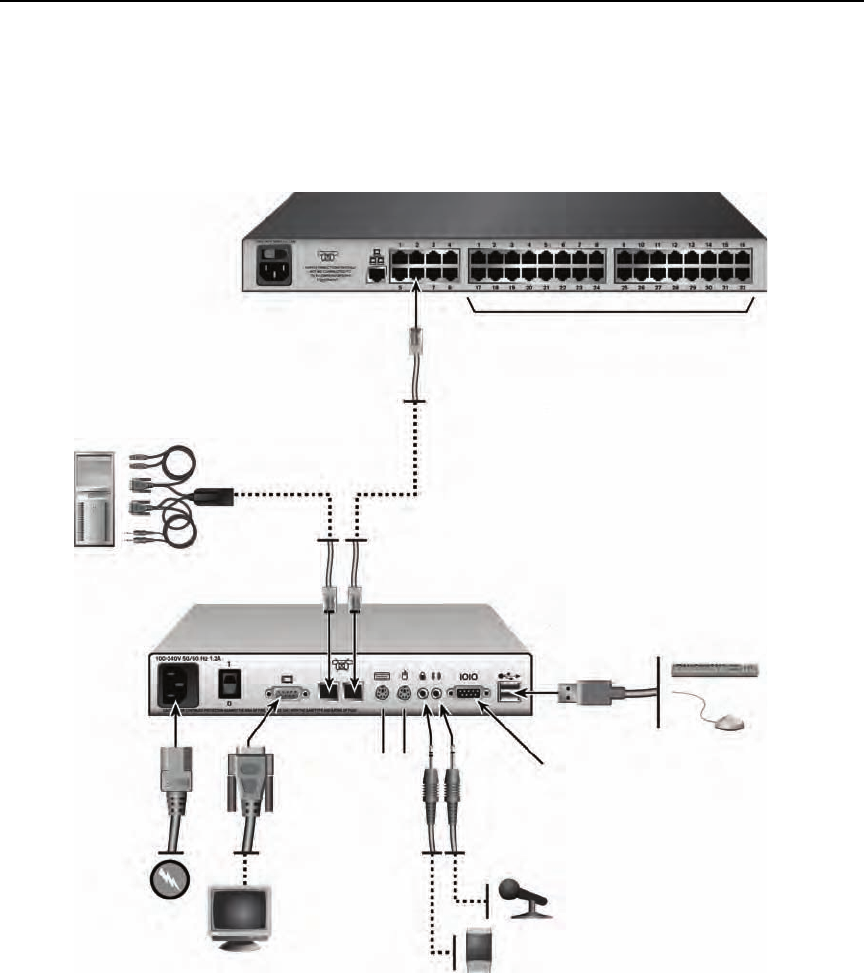

Figure 2.8: Connecting Users to an AMX Switch
Supported keyboard and mouse types
To determine what keyboard and mouse types your us
er station supports, examine the available
ports on the back panel of the user station. USB and PS/2 ports are designated by symbols as shown
Target Server Ports
UTP Cable
AMIQDM Module
(PS/2 Shown)
Local Server
AMX User Station
(AMX 5130 User Station Shown)
PS/2 Mouse
and Keyboard
Ports
Serial Port
Stereo Speakers
and Microphone
Monitor
AMX Switch (AMX 5000 Switch Shown)
USB Keyboard and Mouse
