Chapter 1 Setup
3
2
1
4
1

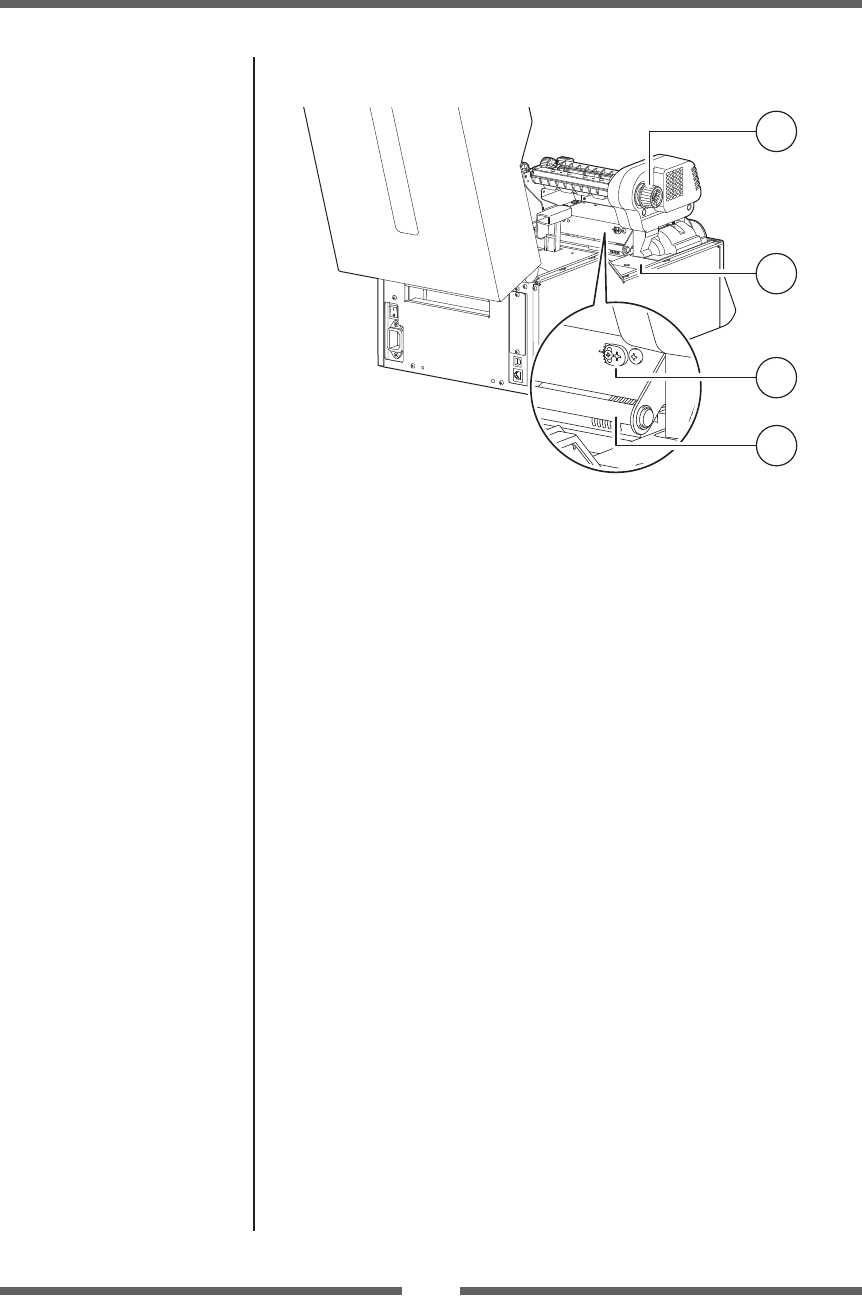

Rear (feeding side) ribbon tension adjustment knob
The adjustment is done according to the width of the ribbon to be
used. It is adjusted when slippage or wrinkling appears in the ribbon.
2
Ribbon guide adjusting cam
Adjustment can eliminate the slack in ribbon and prevent occurrence
of wrinkles.
3
Ribbon guide shaft
It guides the ribbon to be fed.
4
Optional unit connector cover
It is opened when the cables of the cutter unit and the peeler unit are
connected. Do not remove during normal use.
Part Names and Functions
Ribbon Tension Adjustment
(p.61)
Ribbon guide adjustment
(p.65)
