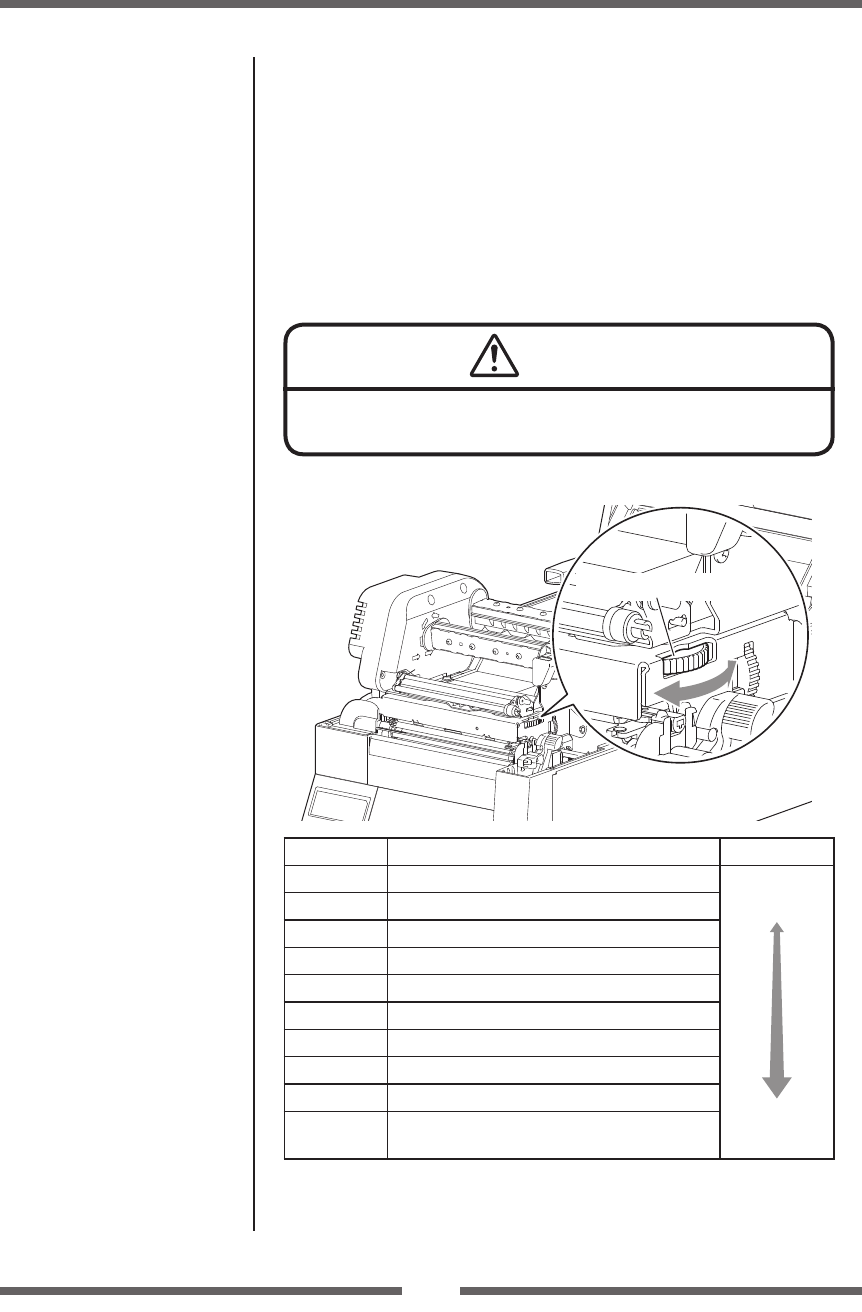

Chapter 3 Printer Adjustments
Media Width Adjustment
The head pressure varies according to the width of the media being
printed.
The head pressure balance must be adjusted according to media width so
that constant head pressure is applied to the head. With this printer, it can
be adjusted easily by turning the media width adjustment dial.
If the printing is blurred or lightly printed on one side or the media moves
in a zigzag pattern adjust the head pressure balance.
After making an adjustment, conrm the output quality with a test print.
When using narrow media, be sure to MAKE this adjustment. (If you do
not, the head may be damaged by jamming, etc.)
9
Media width adjustment dial
Dial position Media width mm (inches) Head pressure
0 19.5 to 23.0 mm (0.77 to 0.90)
Low
High
1 23.0 to 30.0 mm (0.90 to 1.18)
2 30.0 to 39.0 mm (1.18 to 1.53)
3 39.0 to 49.0 mm (1.53 to 1.92)
4 49.0 to 62.0 mm (1.92 to 2.44)
5 62.0 to 76.0 mm (2.44 to 2.99)
6 76.0 to 88.0 mm (2.99 to 3.46)
7 88.0 to 99.0 mm (3.46 to 3.89)
8 99.0 to 108 mm (3.89 to 4.25)
9 108 to 118 mm (4.25 to 4.65)
(setting when shipped)
The following values are criteria.
• Dial adjustment may be required depending on the thickness of print
and occurrence of ribbon wrinkles.
Caution
Installing the Media (p.26)
Self Print Mode (p.34)
