DES-3326S Layer 3 Fast Ethernet Switch User’s Guide
Web-Based Switch Management 227
65,535. The default is None (0).
Remove
Allows for the removal of the selected
OSPF Area from the list.
OSPF Interface Configuration
To configure an OSPF Interface, click on the OSPF
Interface Configuration link:

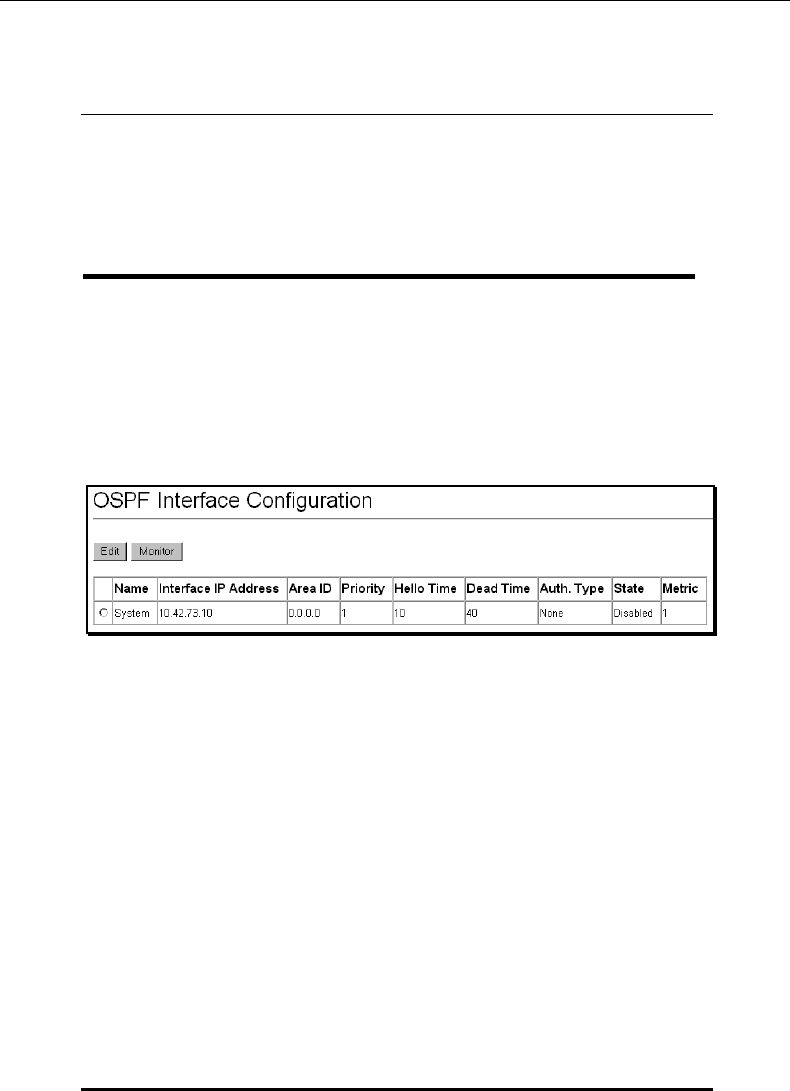

Figure 6-38. OSPF Interface Configuration
All of the IP Interfaces currently configured on the switch will
be displayed. Select the IP interface you want to configure
OSPF for, and then click the Edit button. This will open the
following dialog box:
