11D-Link DAP-3410 User Manual
Section 2 - Installation
Installation
First, you will need to congure the DAP-3410 with a computer connected directly to the unit. The following pages explains
how to set up the DAP-3410 in order to be properly congured and then tested to work as desired.
The DAP-3410 acts as a central connection point for any device (client) that has a 802.11n or a 802.11a wireless network
interface and is within range of the AP. Clients must use the same SSID (wireless network name) and channel as the AP in order
to connect. If wireless security is enabled on the AP, the client will need to enter a password to connect to the AP. In Access
Point mode, multiple clients can connect to the AP at the same time.

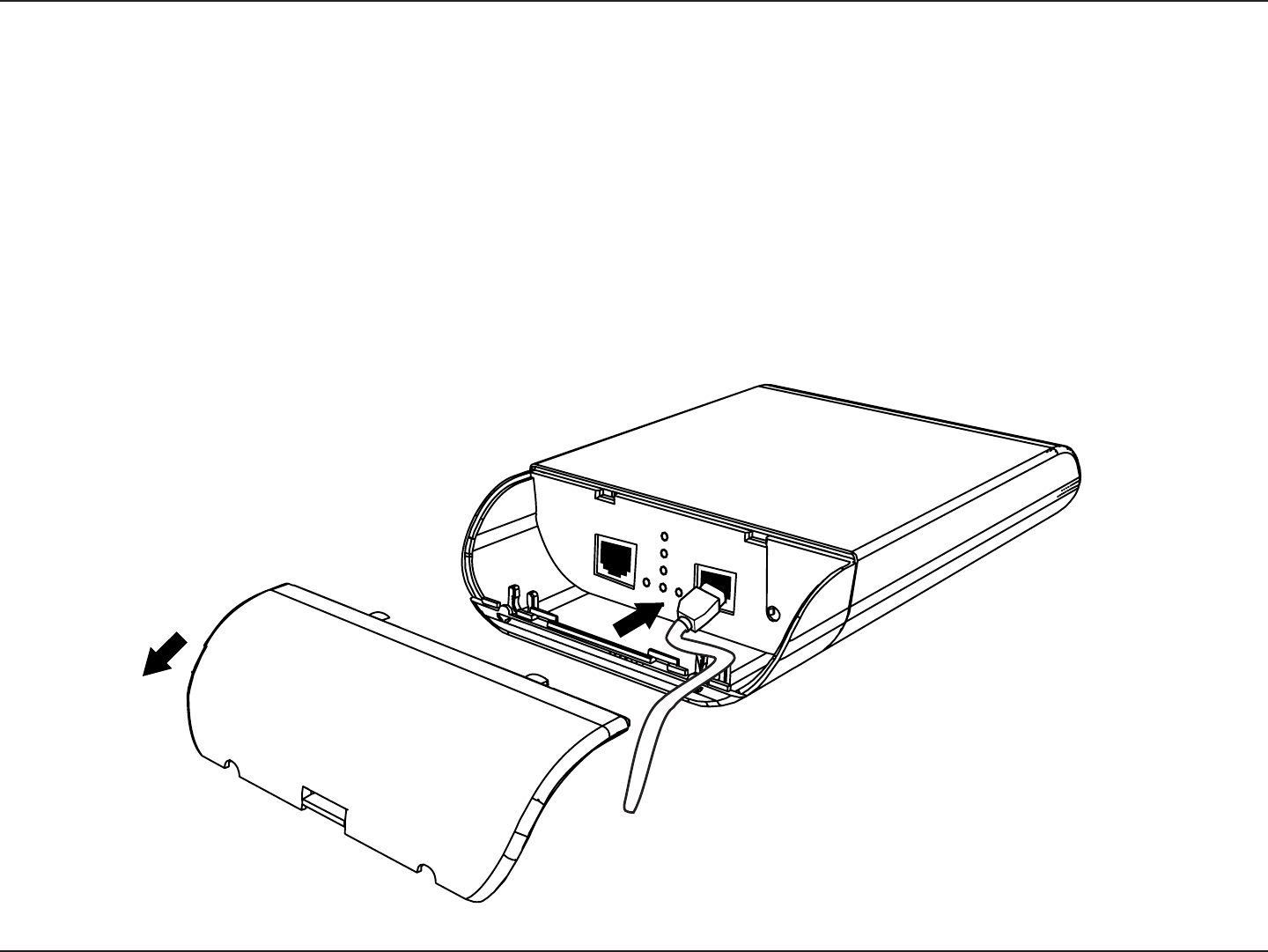

STEP 1: Connect an Ethernet Cable to the LAN (PoE) Port on the AP.
The port connection cover can be
removed using a a small amount of force
so that it pops o. It can be reattached
by snapping it back into place.
