44D-Link DAP-3410 User Manual
Section 3 - Conguration
IP Routing

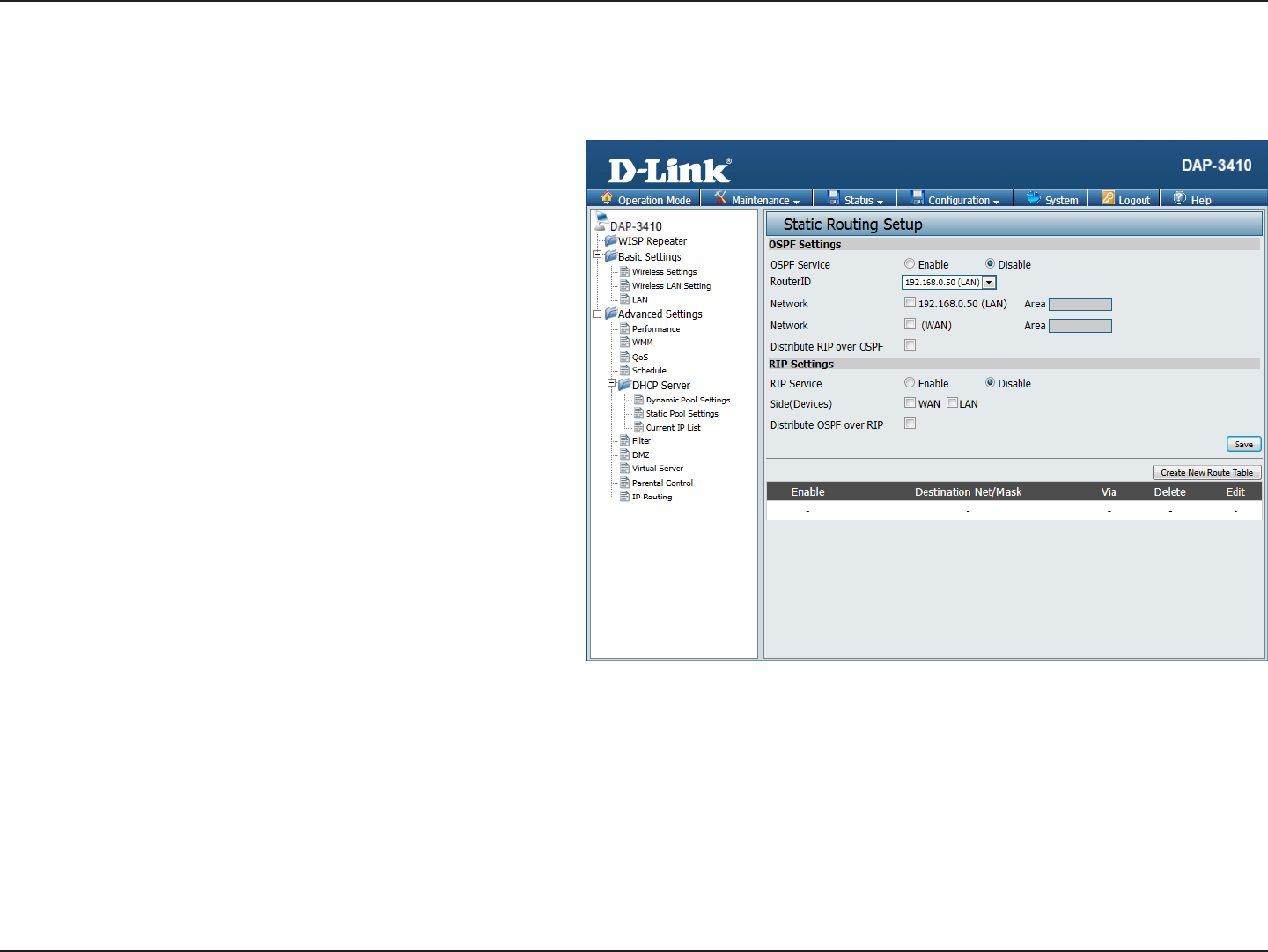

Static Routing Setup
OSPF Service
RouterID:
Network
(Internal):
Network
(External):
Distribute RIP
over OSPF:
RIP Service:
Side (Devices):
Distribute
OSPF over RIP:
Select to either Disable or Enable the AP from
oering OSPF service.
Select the interface that the AP will broadcast
OSPF from. This should be the main interface
that will connect to the local network.
Selecting this checkbox will allow you to enter
an area that will be used by the static routing
setup on the internal network.
Selecting this checkbox will allow you to enter
an area that will be used by the static routing
setup on the external network
Enabling this option will allow the router to
broadcast the RIP routing protocol over OSPF.
This page will allow you to congure the built-in routing
protocols that the DAP-3410 allows when in certain
operating modes.
Select to either Disable or Enable the AP from oering RIP routing services.
Select the checkbox for the interface that will allow clients to connect to.
Enabling this option will allow the router to broadcast the OSPF routing protocol over the RIP service.
Click Create New Route Table to dene specic routes that will be handled by the AP.
