4. Troubleshooting (DeviceNet)

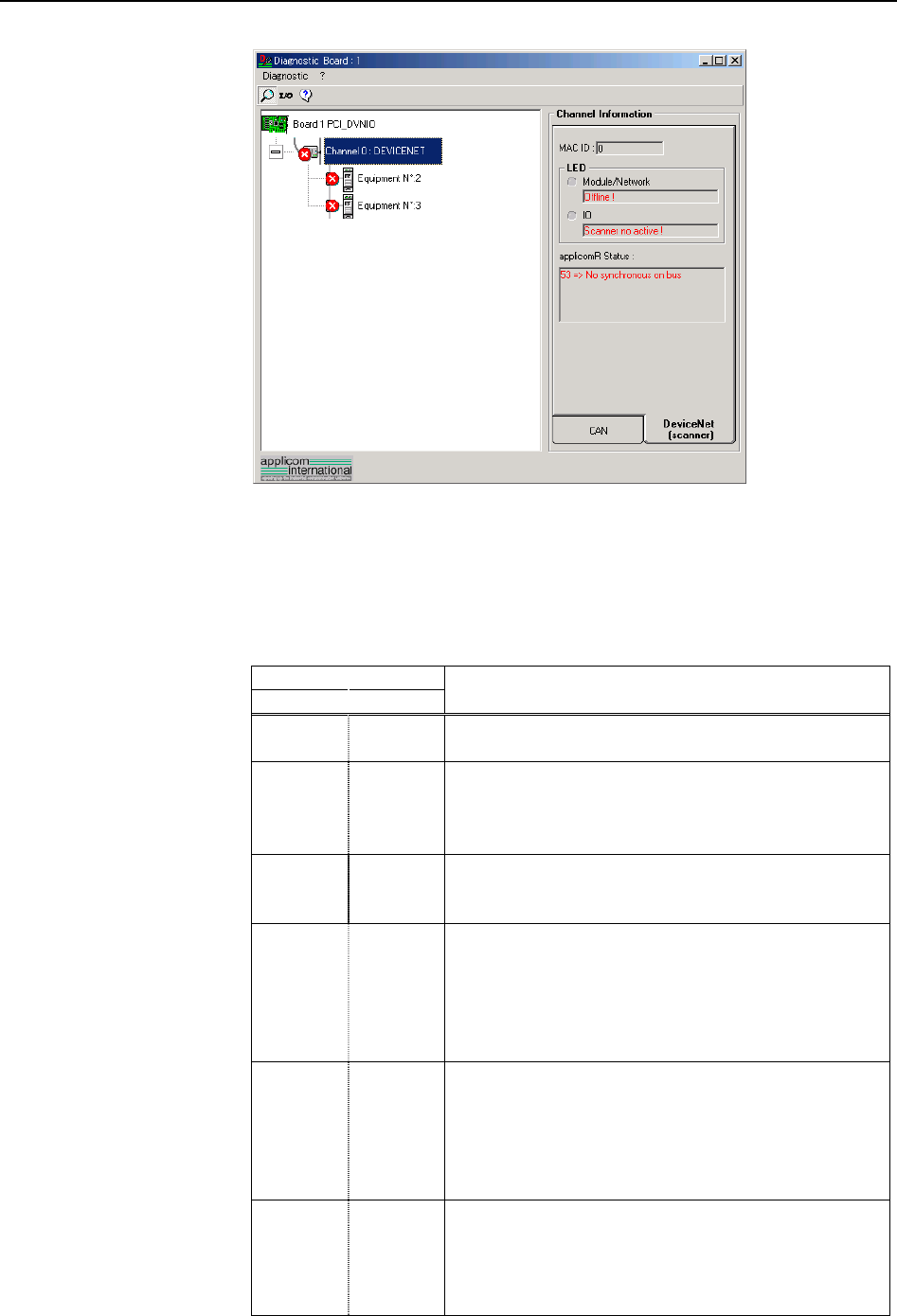

(2) Select the DeviceNet (Scanner) tab. The window changes as shown below.
MAC ID : MAC ID specified for the scanner board
Module/NetWork LED : Network Status (NS) LED status
IO LED : Module Status (MS) LED status
applicomR Status : Scanner board status
The scanner board status is shown in the “Code No. => Comment” form. The
code numbers are shown in the following table.
Status Code
General Protocol
Descriptions
0 No fault detected. The function was performed
correctly.
4 Inaccessible data.
Additional information:
The remote device is in error.
Check its status.
32 Indicates that the parameters passed to the functions
are not correct (eg: Number of requested variables
too large)
33 Response time-out fault.
Additional information:
The device does not answer. Check its status and the
wiring.
The DeviceNet master has no device to be scanned in
its configuration.
34 Physical defect on the line.
Additional information:
No +24V power supply was detected.
The CAN component of the applicomIO® interface
is "Bus Off".
Check the network wiring and Baud Rate.
36 Device not configured.
Define the device configuration with the
applicomIO® Console and re-initiate the
initialization of the applicomIO® product by running
the PcInitIO
108 Fieldbus I/O Rev.6
