2.2.10 LCD Panel
Disassembly
1. Remove the battery, keyboard, hard disk drive, CD/DVD-ROM drive and LCD assembly. (Refer to
section 2.2.1, 2.2.2, 2.2.4, 2.2.5 and 2.2.9 Disassembly)
2. Remove the two rubber pads and two screws on the corners of the panel. (Figure 2-25)
3. Insert a flat screwdriver to the lower part of the LCD cover and gently pry the frame out. Repeat the
process until the cover is completely separated from the housing.
4. Remove the twelve screws and disconnect the cable. (Figure 2-26)

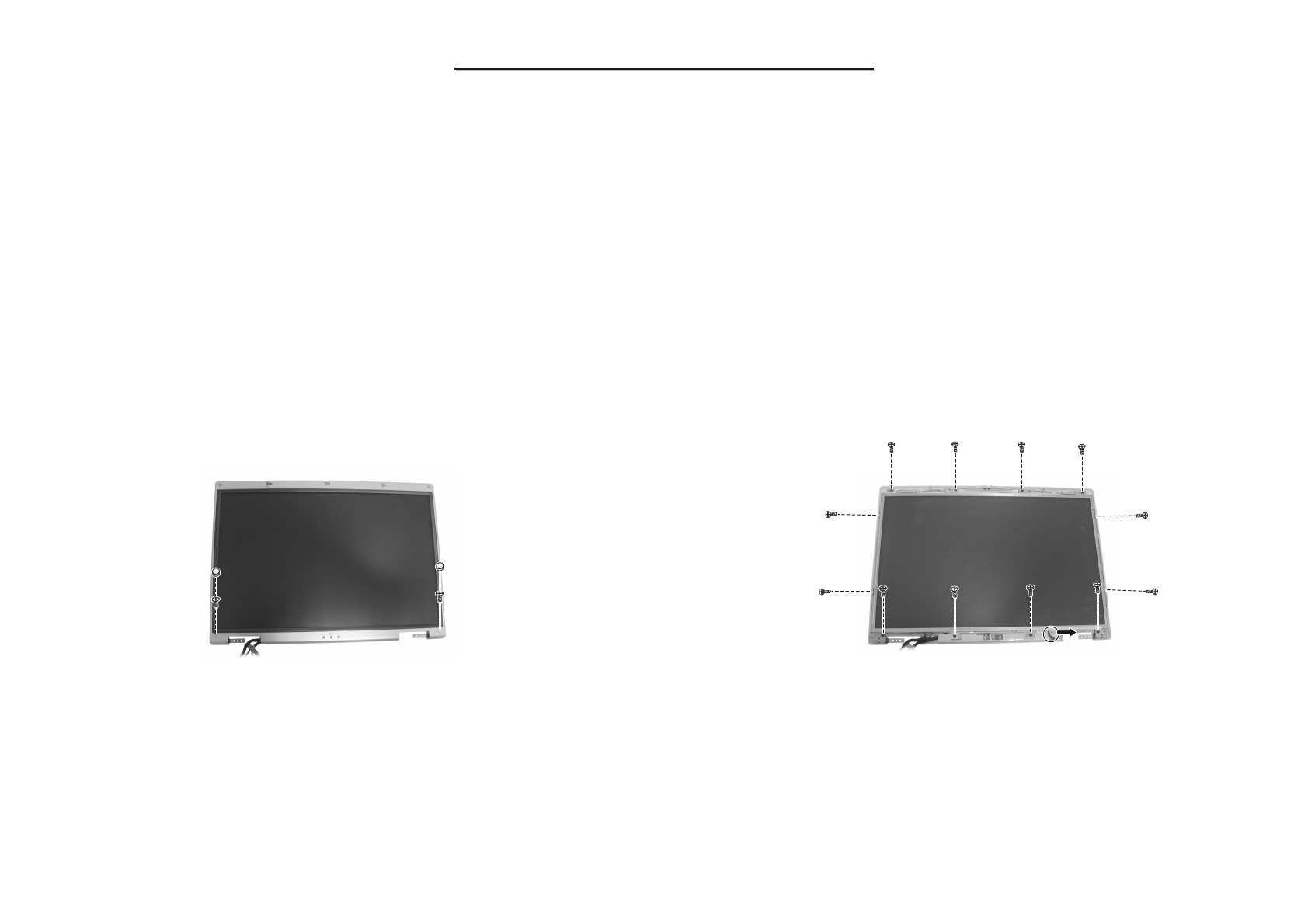

Figure 2-26 Remove twelve screws and
disconnect the cable
Figure 2-25 Remove LCD cover
