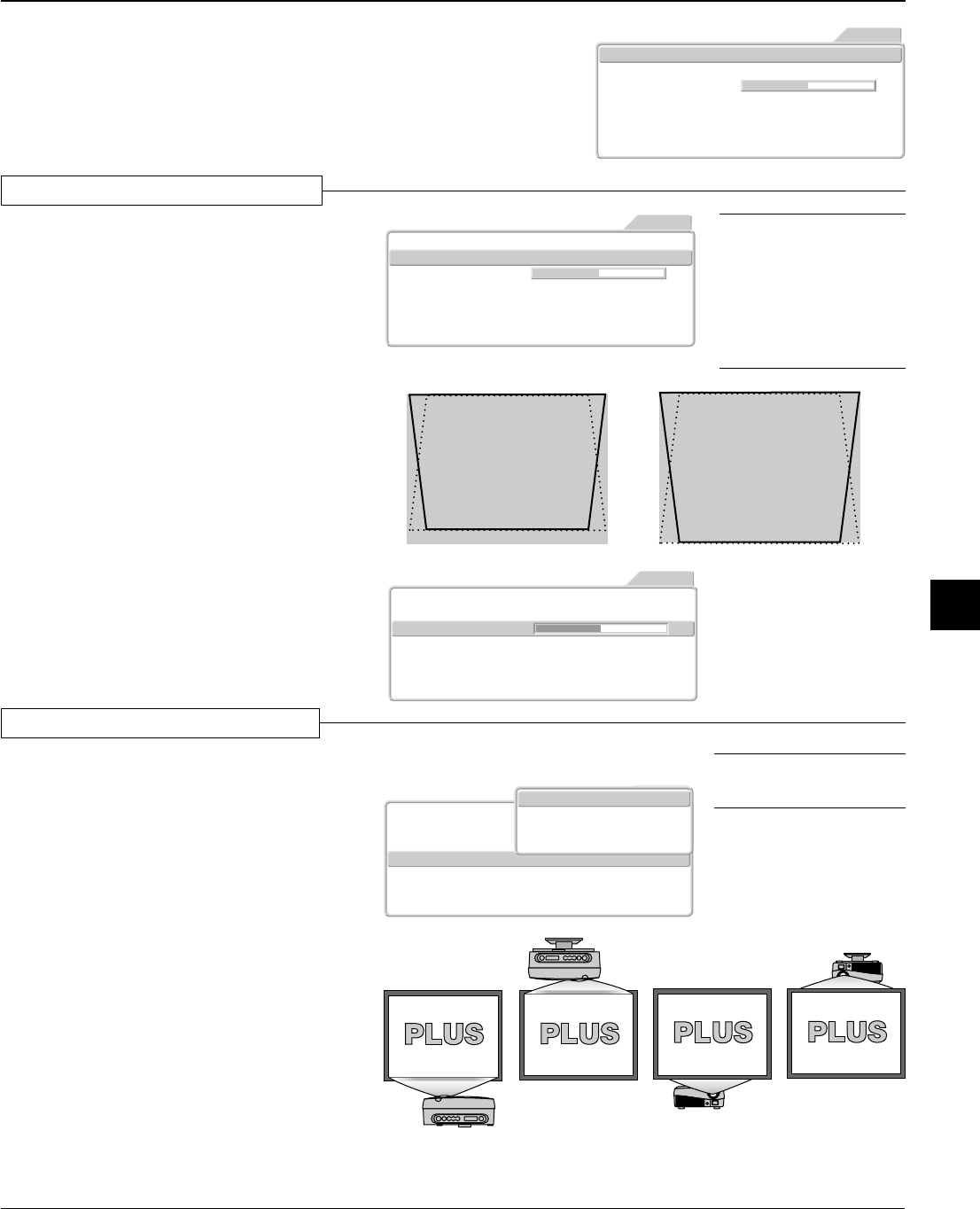

E – 33
Setup
These settings are used when setting up the projector.
See → Page E-24 "Using the On-Screen Menu" for information about performing
menu operations.
Keystone Mode Normal Full
Blue Black
+0Keystone
Off On
Off On
- Installation -
Background
Auto Power Off
LED
Picture2 Setup Info.
VIDEO
Option
Preparation
* Project an image.
* Press the MENU button to display the menu, then select [Setup].
Keystone Mode / Keystone
Adjustment of Keystone Distortion
This adjusts keystone distortion in the vertical direc-
tion.
Adjust so that left and right sides are parallel.
Press the cursor (↑↓) button and align the cursor with
[Keystone Mode], then press the cursor (← →) button
and select the mode.
Normal: Corrects while maintaining the aspect ratio.
Full: Corrects by enlarging the width at the top to a full
sized screen.
Keystone Mode Normal Full
Blue Black
+0Keystone
Off On
Off On
- Installation -
Background
Auto Power Off
LED
Picture2 Setup Info.
VIDEO
Option
Full
Keystone Mode Normal Full
Blue Black
+0Keystone
Off On
Off On
- Installation -
Background
Auto Power Off
LED
Picture2 Setup Info.
VIDEO
Option
Note: Keystone distortion arises
when the projector is not installed
level, or when the screen is in-
clined which results in a difference
in the distance of upper and lower
projection points. Keystone cor-
rection compensates for this. This
projector has two correction
modes.
Installation
Screen Projection System Settings
These settings are for setting projection from the front
of the screen and from the rear of the screen.
Press the cursor (↑↓) button and align the cursor with
[Installation], then press the SET button.
The setup screen will be displayed.
Floor - Front
Projection is from the front of the screen.
Floor - Rear
Projection is from the rear of the screen.
Ceiling -Front
Ceiling installation with projection from the front.
Ceiling - Rear
Ceiling installation with projection from the rear.
Note: When projecting from the
rear of the screen, a translucent
type screen is required.
Keystone Mode
Keystone
- Installation -
Background
Auto Power Off
LED
Picture2 Setup Info.
VIDEO
Option
Floor-Front
Floor-Rear
Ceiling-Front
Ceiling-Rear
Floor - Front
Floor - Rear
Ceiling -Front
Ceiling - Rear
Consult your dealer or installer for special installation such as ceiling mounting.
Adjustment of Keystone Distortion
Press the cursor (↓) button and align the cursor with
[Keystone Mode], then
press the cursor (← →) button to correct the key-
stone distribution.
Normal
