Replacement Procedures
LCD unit / FL inverter
CAUTION: When replacing a LCD, it is required that SVP parameter is set. Update with
the latest EC/KBC as described in Appendix H “EC/KBC Rewrite
Procedures”.
Removing the LCD unit / FL inverter
The following describes the procedure for removing the LCD unit and FL inverter (See
Figure 4-52 to 4-55).
1. Remove Screw rubber cover X4
2. Remove the following screws securing the display mask
M2.5×6.0 BIND screw X4
3. Insert your finger between the edge of the display mask and the LCD, and remove the
display mask while releasing the latches of display mask.
Display mask
M 2.5X6.0 BIND screw
Screw rubber cover

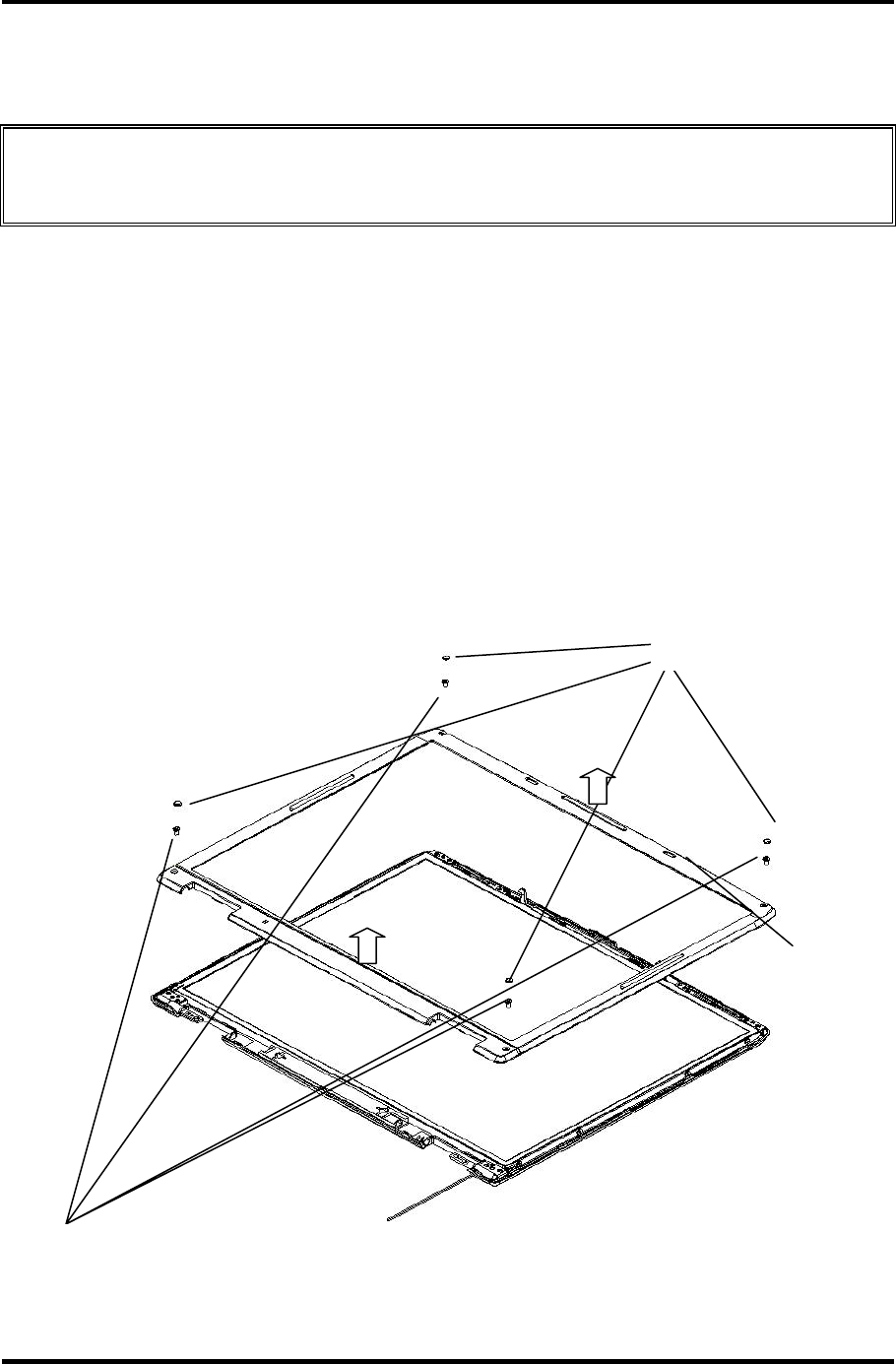

Figure 4-25 Removing the display mask
Satellite L20 Maintenance Manual(960-Q01) 193
