Installation
Page 19

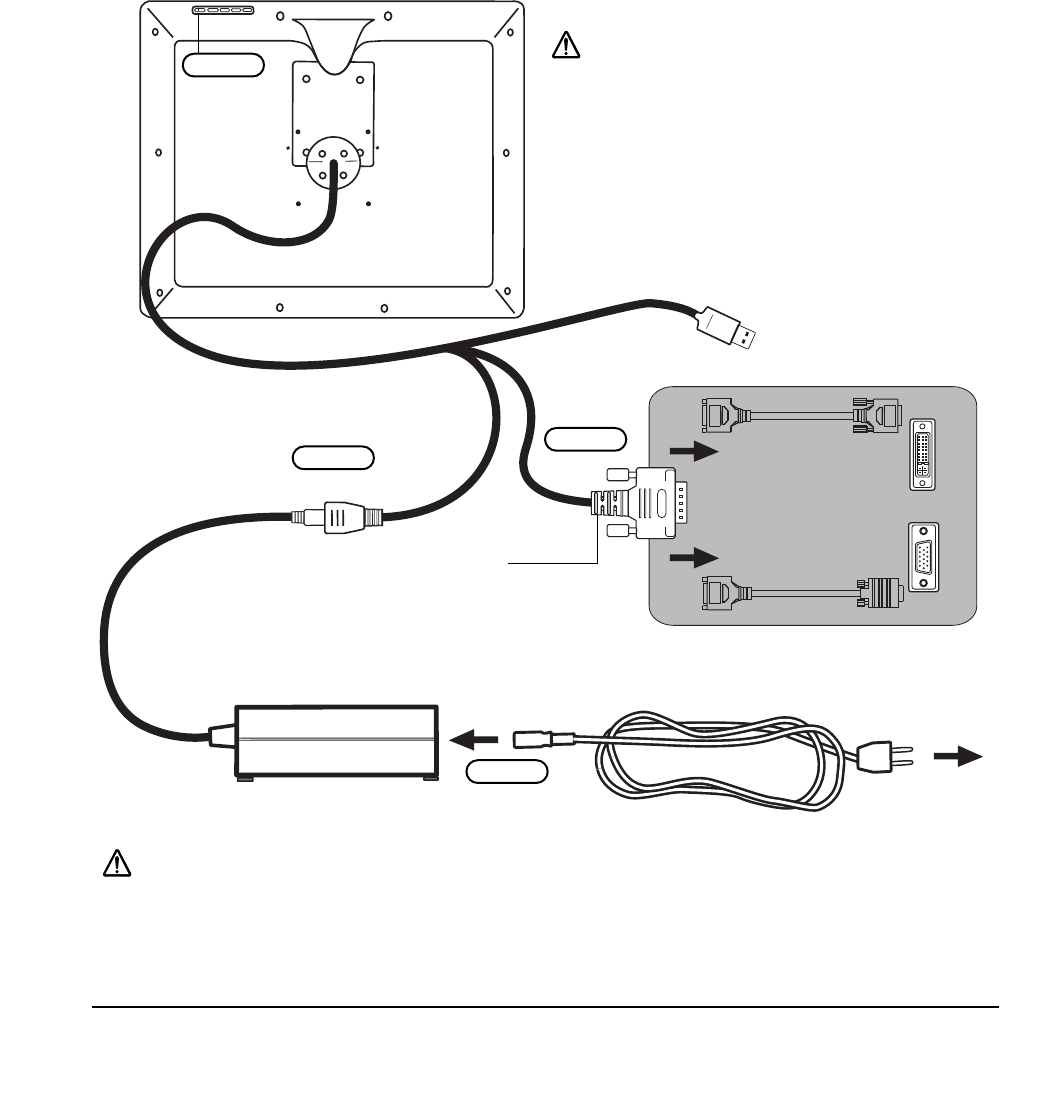

DISPLAY CABLING DIAGRAM
Cintiq, rear view
– B –
Video card
DVI or VGA
Rear panel of your computer
Do not attach the USB data
cable until instructed to do so.
Power adapter
– C –
DC I
Nput
To AC outlet
DVI-I connector
To connect to a DVI-D connector,
use the DVI-D to DVI-I adapter.
To connect to a VGA connector,
use the VGA to DVI-I adapter.
– D –
CAUTION
Make sure your video card has
a DVI or VGA connector, and
that you correctly set the Cintiq
DVI/VGA switch for the video
connector you are using.
C
AUTION
Use only the power adapter that came with Cintiq; use of an improper power adapter may
damage the unit.
Do not connect or disconnect the video or power cables while Cintiq or your computer
are turned on – this can damage the display or computer video card.
Make sure that the display refresh rate does not exceed 85 Hz (60 Hz for UXGA).
DVI/VGA switch
– A –
