7. Configurator, Projector alignment settings

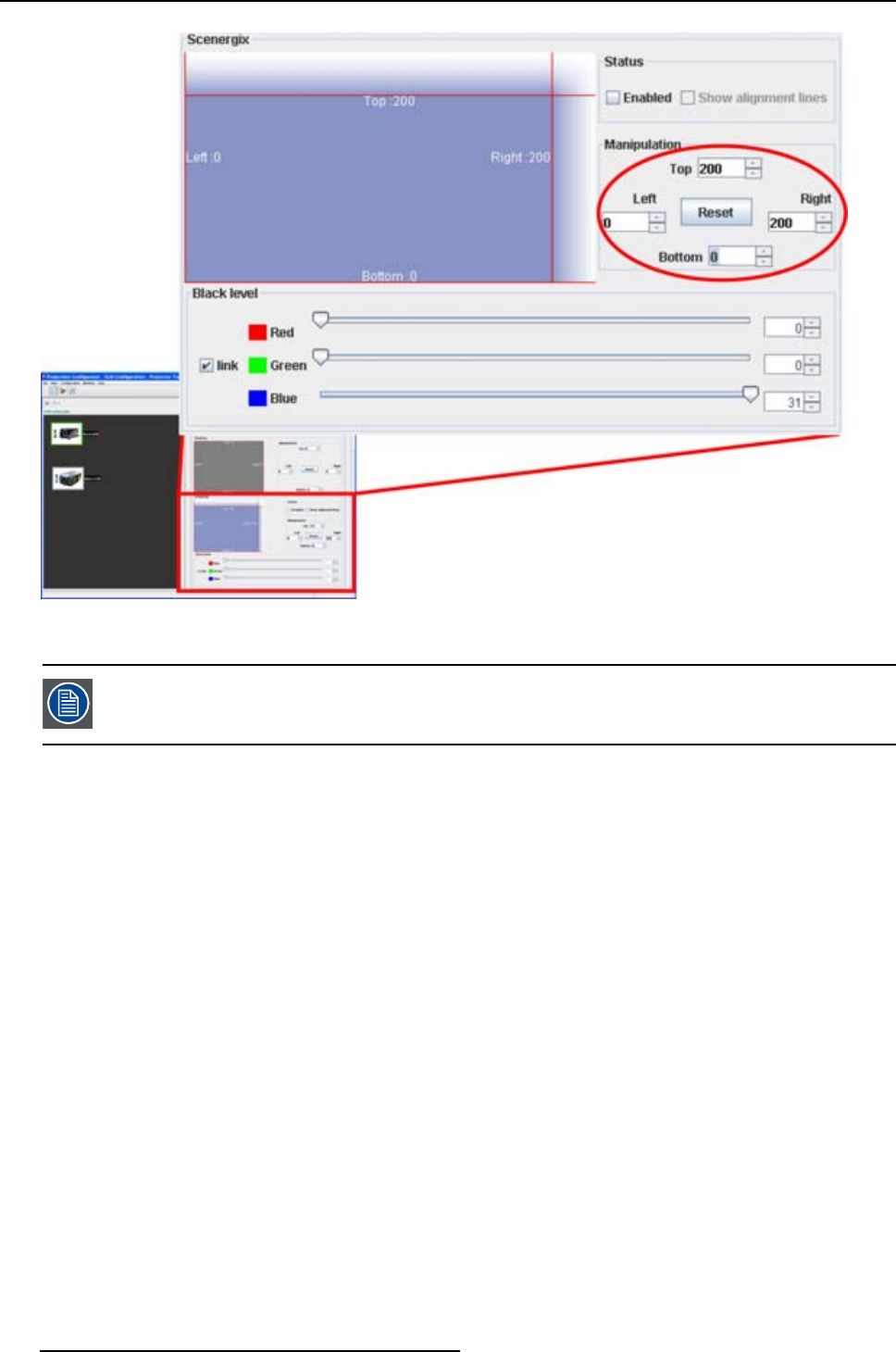

Image 7-16
ScenergiX size adjustment
Use Reset to set all overlap zones back to zero (0).
7.6.7 Adjusting the black level of the images
Why black level adjustment
For dark images, the overlap zone will be brighter then the rest of the images. Typically for DLP projectors,
next to the overlap zone, a brighter area is recognized. This area is known as a DLP leakage area. This
area must also be exclude for the black level adjustment. Therefore we can rise the black level of the
remaining image (excluding the overlap zone and the DLP leakage area).
First, the width of the leakage area must be set. The white cursor line indicates the border of the overlap
area. The green cursor line indicates the current installed DLP leakage area border and starts at the
position of the white cursor line (no width installed). This green line can be moved to the border of the
DLP leakage area with the cursor
keys.
86
R59770183 PROJECTOR TOOLSET 15/07/2009
