10. Settings
Image 10-26
Image 10-27

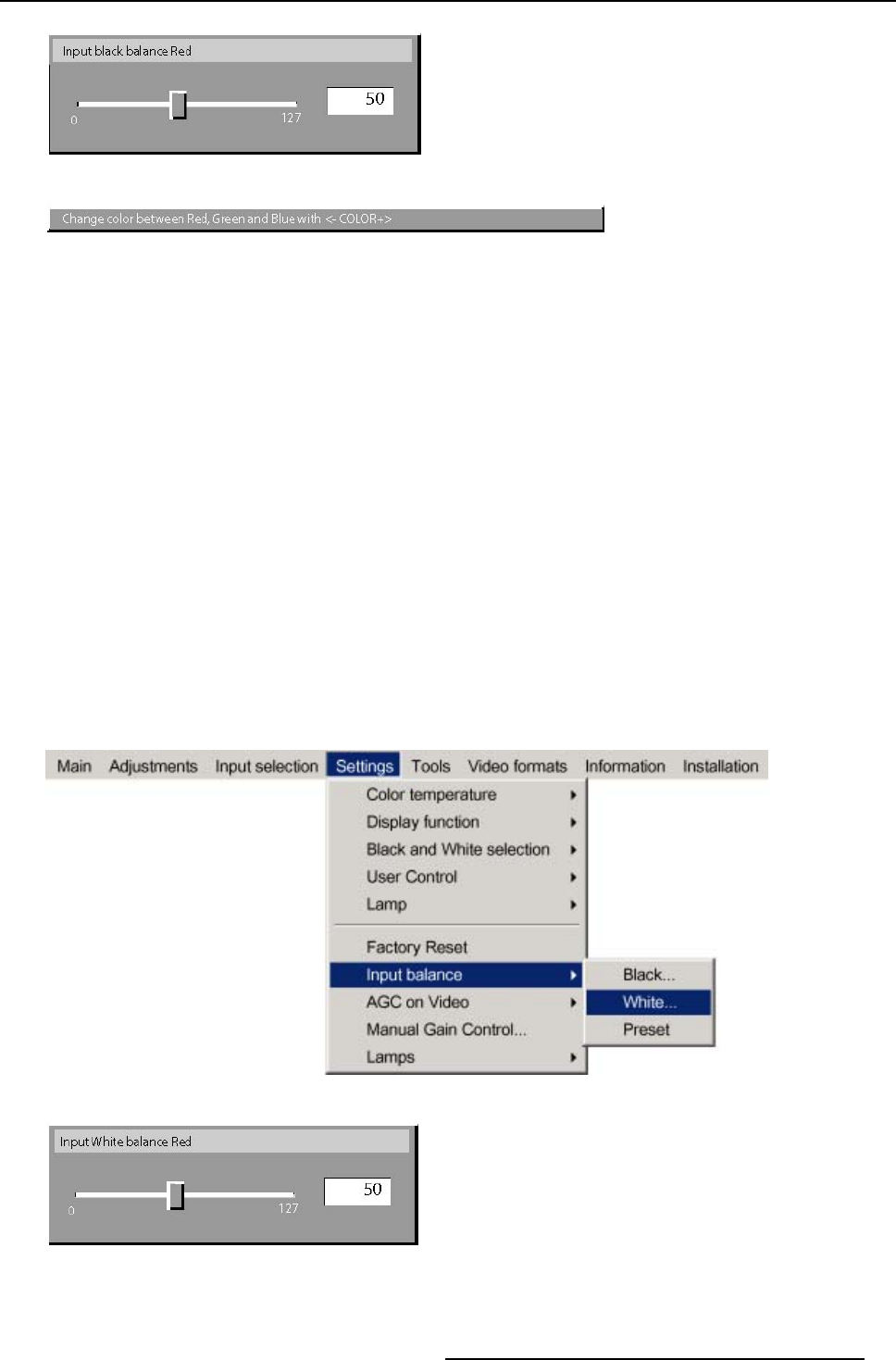

Performing White input balance
1. Connect the source you want to project
2. Select a white pattern (or gray scale as alternative)
3. Press MENU to activate the Toolbar
4. Press → to select the Image item
5. Press ↓ to Pull down the Image menu
6. Use ↑ or ↓ to select In put balance
7. Press → to pull down the menu
8. Use ↓ or ↑ to select Wh ite balance (image 10-28)
9. adjust the red white level (gain) on a minimal value (image 10-29)
10.adjust the blue white level (gain) on a minimal value
Note: thisminimal value is not necessary , provided that the2 other colors arenot influencing too much thecolor to be adjusted,
in fact the aim is to minimize the effe ct of the two other colors since there is a risk of reaching too soon the transition
(bright spots) due to the contribution of these two other colors signals.
11.Adjust the Green white level (
gain) until bright spots appear on the screen
12.Adjust the Blue white level (gain) until bright spots appear on the screen
13.Adjust the Red white level (gain) until bright spots appear on the screen
the projected image should know be noisy neutral grey.
Image 10-28
Image 1
0-29
R5976741 MGP 15 MEDICAL GRADE PROJECTOR 28/04/2004 79
