Chapter 3 Disassembly and Maintenance
3-5. Disassembly, Reassembly and Lubrication
CL-S700/CL-S703/CL-S700R 3-34
(1) Separating the Rewinder part

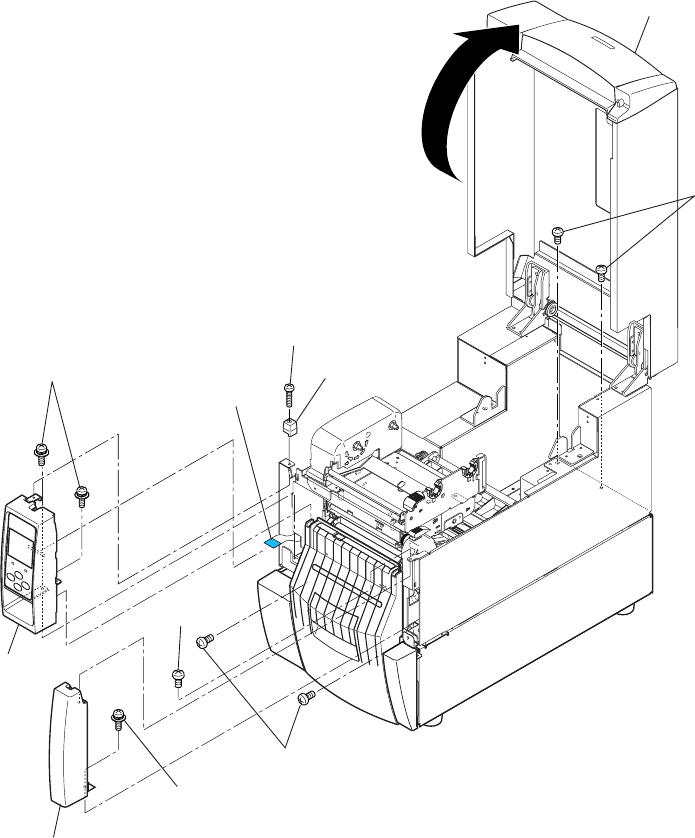

1. Open the top cover.
2. Remove 1 screw (PH, M3x12) and detach the Top Cover Guide.
3. Remove 2 screws (PH (SW+PW), M3x5) and detach the “SA, Ope-pane” frontward.
4. Disconnect the “Cable, Ope-pane FFC” from the “SA, Ope-pane”.
Note on reassembling:
• Insert the “Cable, Ope-pane FFC” with its blue tape facing up.
5. Remove 1 screw (BH, M3x5K) and 1 screw (PH (SW+PW), M3x5), and detach the “SA,
Front Right”.
6. Remove 2 screw (PHT (#2), M3x6) from the front and 2 screws (BH, M3x5) from the rear
side.
Guide, Top Cover
PH, M3x12
Cable, Ope-pane FFC
PH (SW+PW), M3x5
BH, M3x5K
SA, Front Right
PH (SW+PW), M3x5
SA, Ope-pane
PHT (#2), M3x6
(Top Cover)
BH, M3x5
