Chapter 2 Operating Principles
2-3. Operation Panel
CL-S700/CL-S703/CL-S700R 2-36
2-3. Operation Panel
Operation panel is located on the left/front side of the printer.
Operation panel consists of 4 keys, 6 LEDs and 1 LCD.

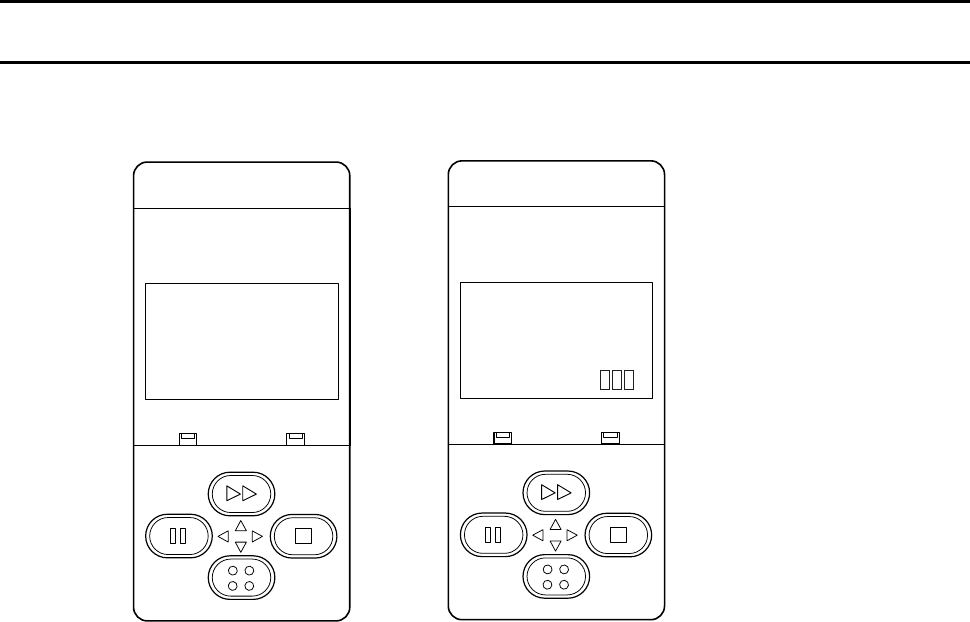

CL-S700/CL-S703 CL-S700R
2-3-1. External view
(1) Keys
There are 4 keys, [MENU], [PAUSE], [FEED] and [STOP]. The function name on the key is
selected when the key is pressed.
(2) LEDs
There are 6 LEDs; POWER LED, ERROR LED and 4 LEDs for keys. The LEDs light up or
blink to indicate printer status, setting modes, or error conditions.
POWER LED: Lights up when power is turned on. (green)
ERROR LED: Blinks when an error occurs. (orange)
LEDs for keys: Light up when power is turned on to illuminate keys.
(3) LCD (Liquid Crystal Display)
The LCD is a 128 x 64 dots display using STN (Super-Twisted Nematic) display system.
It displays printer statuses including alarm statuses, menus and its operation guide, etc.
POWER ERROR
FEED
STOP
MENU
PAUSE
On Line
Ready
POWER ERROR
FEED
STOP
MENU
PAUSE
On Line
Ready
Rewind
