Chapter 2 Operating Principles
2-1. Operation of Each Mechanism
2-13 CL-S700/CL-S703/CL-S700R
For thick media (tag paper):
For thick media, normally, the media thickness adjustment screw will be turned further clockwise 2
to 4 turns from the center line of the media thickness check window. When the media thickness
adjustment screw is turned clockwise further from the center position, the right end of the Head
Plate is lowered and the thermal element parts slightly moves to the left.
Shipping position:
It is the position where the screw is turned by 2 turns counterclockwise from the center line (head
offset “0”) of the media thickness check window.

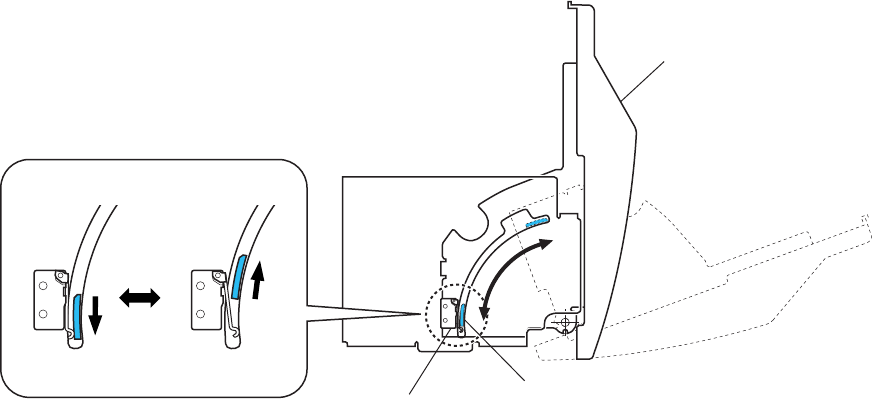

2-1-8. Rewinder Cover Open Detection Mechanism (CL-S700R only)
The component of the rewinder cover detection mechanism is as follows:
(a) SA, Interlock SW (Rewinder Cover Open Sensor)
The rewinder cover open detection mechanism detects the open/close status of the rewinder
cover.
When the rewinder cover is closed, the lever of the interlock switch is pushed by the plate “A” and
it turns ON. While the rewinder cover is opened, the plate “A” comes off the interlock switch and
the switch turns OFF.
The CPU on the Main PCB detects open/close status of the rewinder cover by sensing the output
from the “SA, Interlock SW”.
When the rewinder cover is opened, the ERROR LED blinks and the LCD displays “Error Rewinder
Open” on the operation panel.
ON OFF
(Rewinder Cover)
SA, Interlock SW
SA, Interlock SW
A
