4.

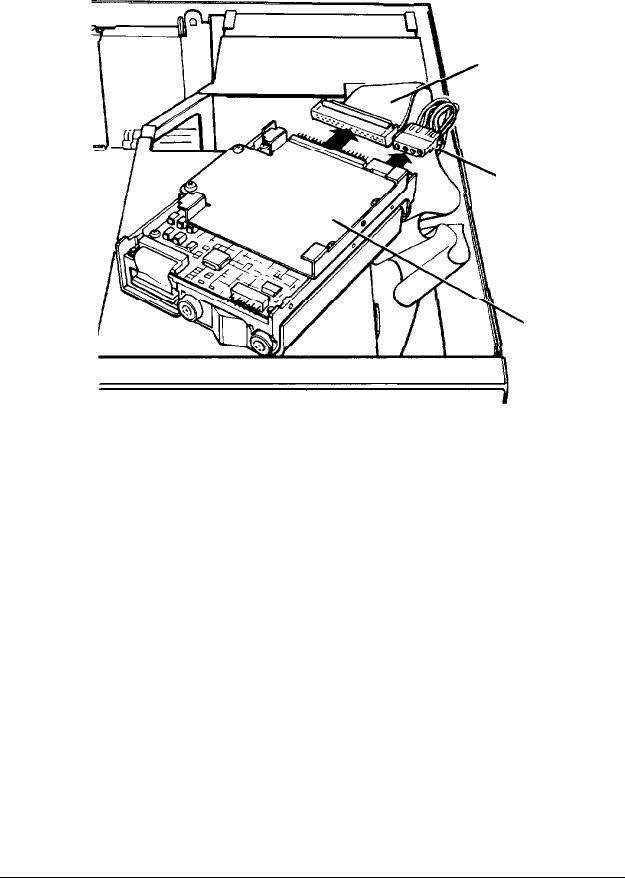

Disconnect the power supply connector from the socket on
the back of the hard disk drive, as shown below. Firmly pull
the connector straight out from the socket so you do not
bend the pins. Do not pull too hard on the cable; pull on
the plastic connector, if possible.
ribbon cable
connector
w
t\
lb
power supply
connector
1
.
.
1-F
mounting
plate
5.
Remove the ribbon cable connector from the back of the
drive in the same manner, as shown above.
If you removed the drive because you are going to install or
remove a drive in a horizontal drive bay, follow the
instructions under “Installing or Removing a Disk Drive in
the Horizontal Position” on the next page. Do not perform
steps 6 through 8.
If you are not going to reinstall the hard disk drive you have
just removed, go to step 6.
B-26
Installing and Removing Disk Drives
