The EpsonNet Configuration Utility
9-15
R4C3610 Adm/G
Rev. C
A5 size CHAP9.FM
8/4/00 Pass 0
R
Proof Sign-off:
KOW M.Arai K.Nishi
K. Nishi
J.Hoadley
EpsonNet MacAssist

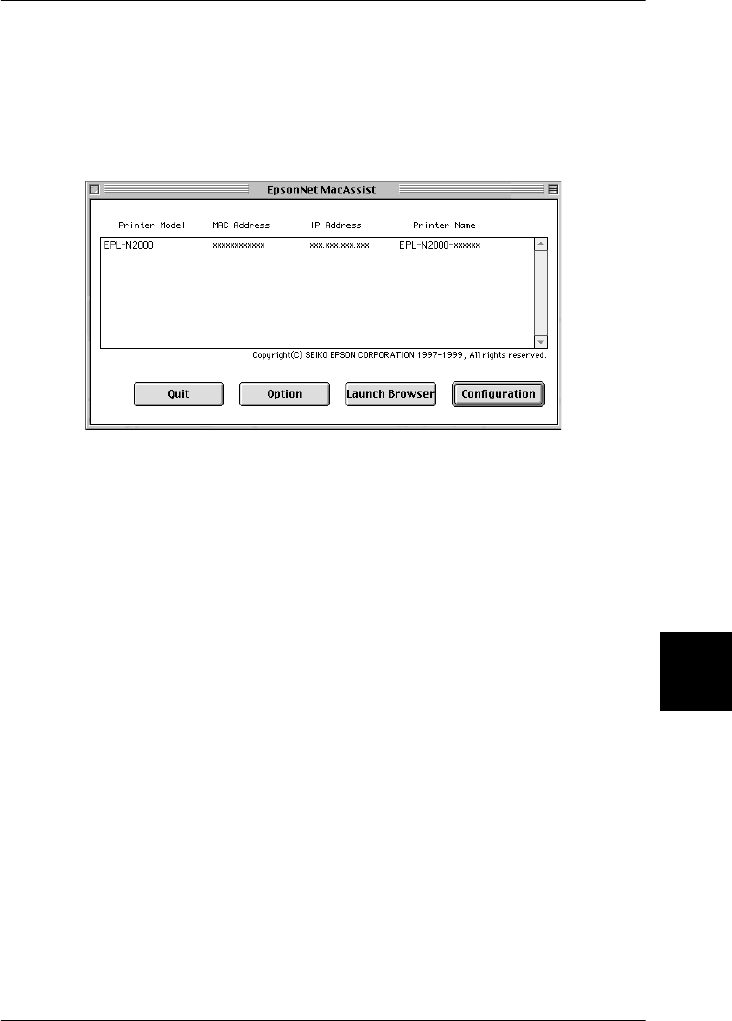

EpsonNet MacAssist dialog box
This section describes the EpsonNet MacAssist dialog box.
List box:
The interface card information is displayed in the list box. The
information consists of the printer model, the MAC address,
the IP address, and the print server name.
Option:
You can set the time-out length for communication for
EpsonNet MacAssist to a value between 3 and 99 seconds. The
default value is 5 seconds.
By clicking
Select Zone
, you can add a zone to search for
interface cards in a particular zone. The interface cards which
belong to the selected zone are displayed in the list box and
you can change their settings. The zones acquired from the
network environment are displayed in the Zone list. The
zones to be searched are displayed in the Search list. The
maximum number of zones that can be displayed in the Zone
list and Search zone is 2000. You need to restart EpsonNet
MacAssist for settings to take effect.
