DIP switch
There is a DIP switch on the board of interface card models
C82363
✽
and C82364
✽
. The interface card automatically selects
the interface mode if it is set to
AUTO
. We recommend you use
the
AUTO
setting.
If you need to manually set the interface mode with the DIP
switch, refer the following table.
Mode Position of the switch
AUTO AUTO
100BASE-TX interface
(Full Duplex)
MANUAL, 100M, FULL
100BASE-TX interface
(Half Duplex)
MANUAL, 100M, HALF
10BASE-T interface
(Half Duplex)
MANUAL, 10M, (either FULL or HALF)

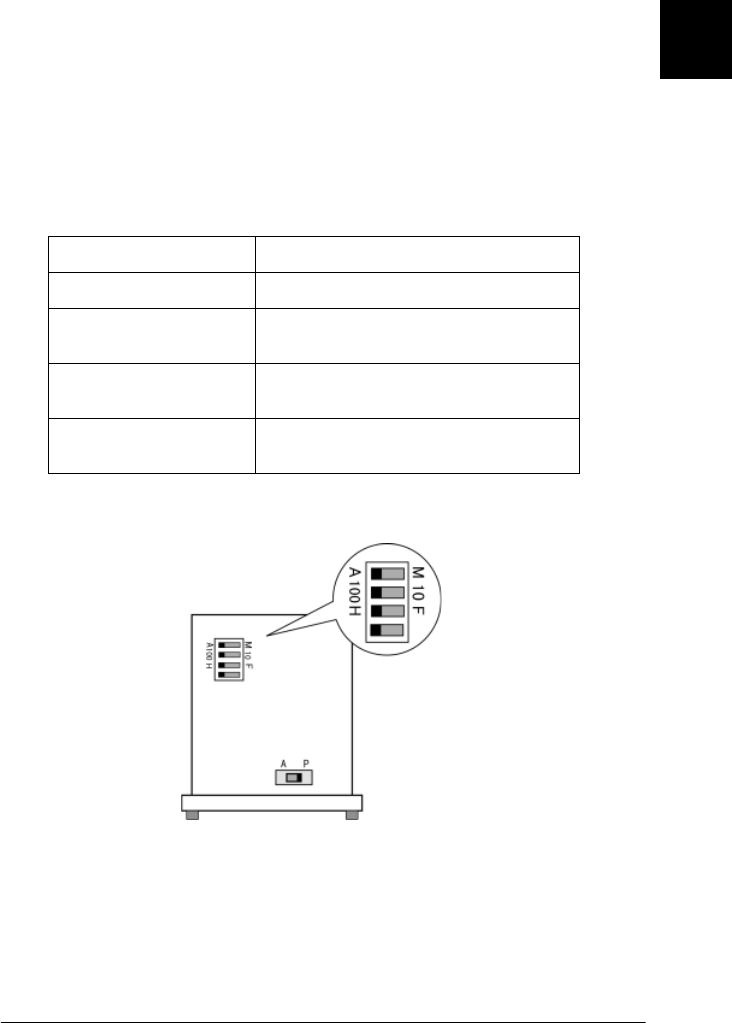

Dip switch
