DTE Drop/Insert Interface
The DTE Drop/Insert (DSX-1) interface connector is a DB15-type socket
connector (Table D-2). For information about using Relay Contact Sense for
external DTE loopback, refer to the DTE LB on Contact configuration option in
DTE Interface Configuration Options of Appendix C.
The DTE Drop/Insert (DSX-1) cable (Figure D-3) is typically supplied by a DTE
vendor. It is made of shielded twisted-pair wires (22 AWG). The cable connector
is a DB15-type plug connector. Be sure to connect the shield ground only at the
DSU/CSU end to prevent ground loops.
Table D-2. DTE Drop/Insert (DSX-1 Connector)
Signal
Pin Number
Receiver Tip from DTE 1
Receiver Ring from DTE 9
Transmitter Tip to DTE 3
Transmitter Ring to DTE 11
Relay Contact Sense Return 12
Relay Contact Sense 14
Shield Ground 2,4

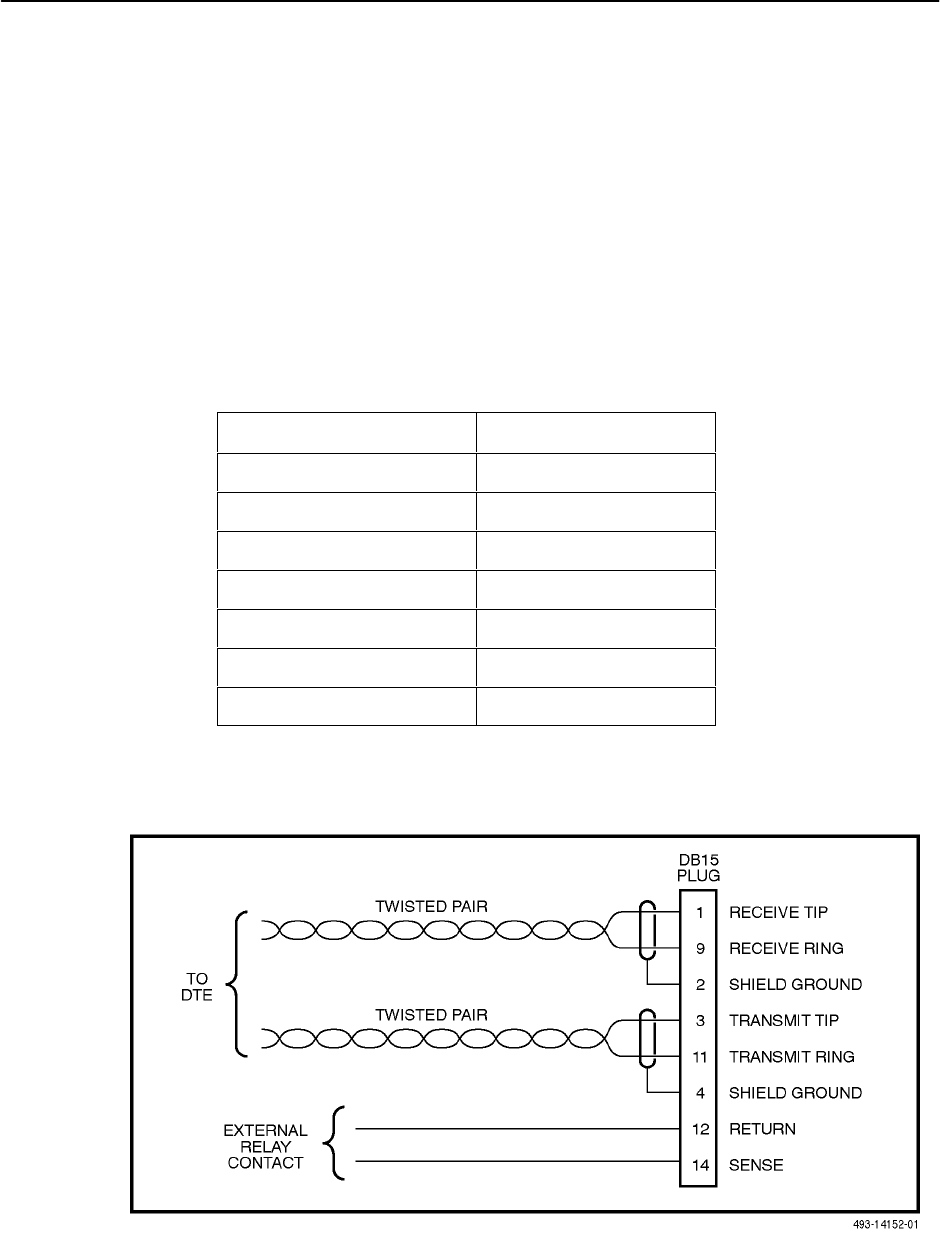

Figure D-3. DTE Drop/Insert (DSX-1) Cable
