IP Network Addressing Scenario
F-6
3162-A2-GB20-40August 2000
Multiple NMSs

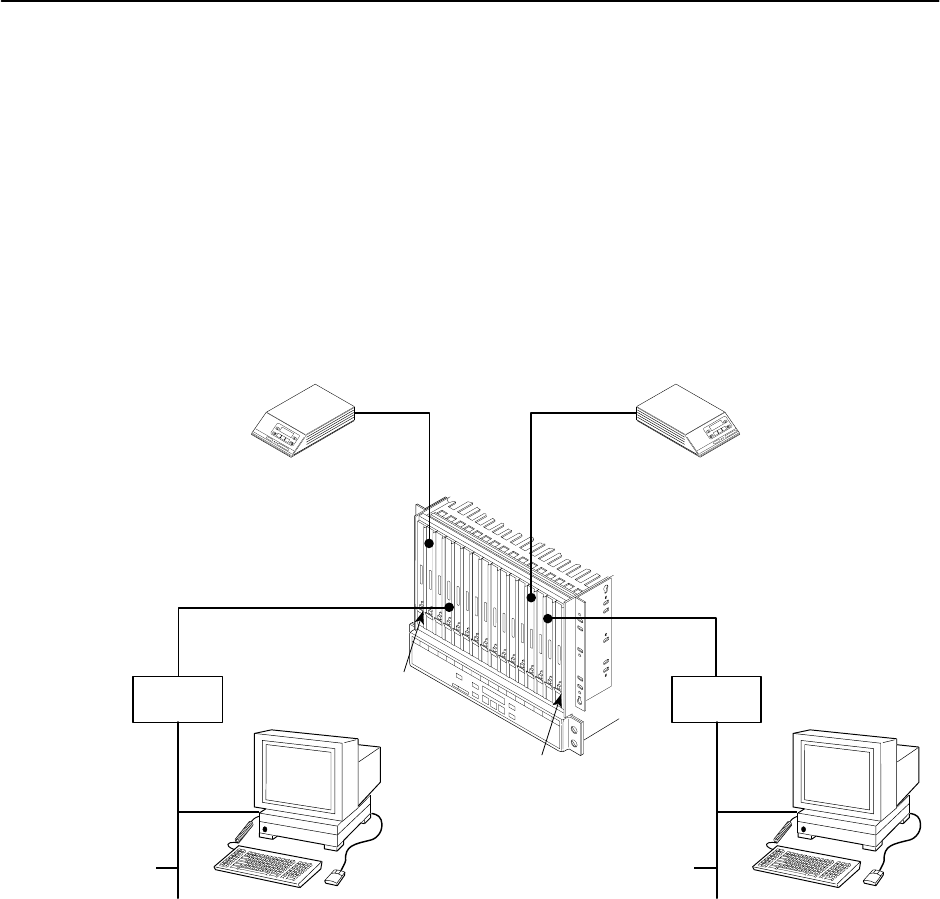

Figure F-5 illustrates multiple COM ports on the same carrier connected to
different NMSs. This might be used in service-provider applications, where some
of the carrier’s circuit cards (and their remotes) are managed by one NMS and
other cards are managed by a different NMS. In this example, each card and
remote is on a separate subnet. Also, note that each LAN Adapter connection is
on a different subnet. The subnet mask is 255.255.255.00. The NMS hosts would
only need routes added for the subnets that they are to manage.
ETHERNET
135.18.23.2
496-14649-02
LAN
ADAPTER
T1
COMSPHERE 3610
135.18.34.2
135.18.22.1 . . . . 135.18.37.1
135.140.22.79
COM IP
ADDRESS:
135.140.22.95
SUBNET 135.18.34.0
SUBNET 135.18.23.0
T1
C
O
M
S
P
H
E
R
E
3
0
0
0
ETHERNET
LAN
ADAPTER
135.18.40.1
COMSPHERE 3610
SUBNET 135.140.22.0 SUBNET 135.18.40.0
COM IP
ADDRESS:
135.18.40.5
Figure F-5. Multiple COM Ports Connected to Different NMSs
