DMX 400/430 Operator’s Manual 5
1.4 Tear-off Assembly Installation
1. Open the cover.
2. Disengage the Printhead by rotating the Head-Lift Lever
counter-clockwise to the ‘up’ position.
3. Fit the Tear-off Assembly to the slots below the drive roller and
push it down until it snaps into place.
4. Engage the Printhead by rotating the Head-Lift Lever clockwise,
locking into the ‘down’ position.

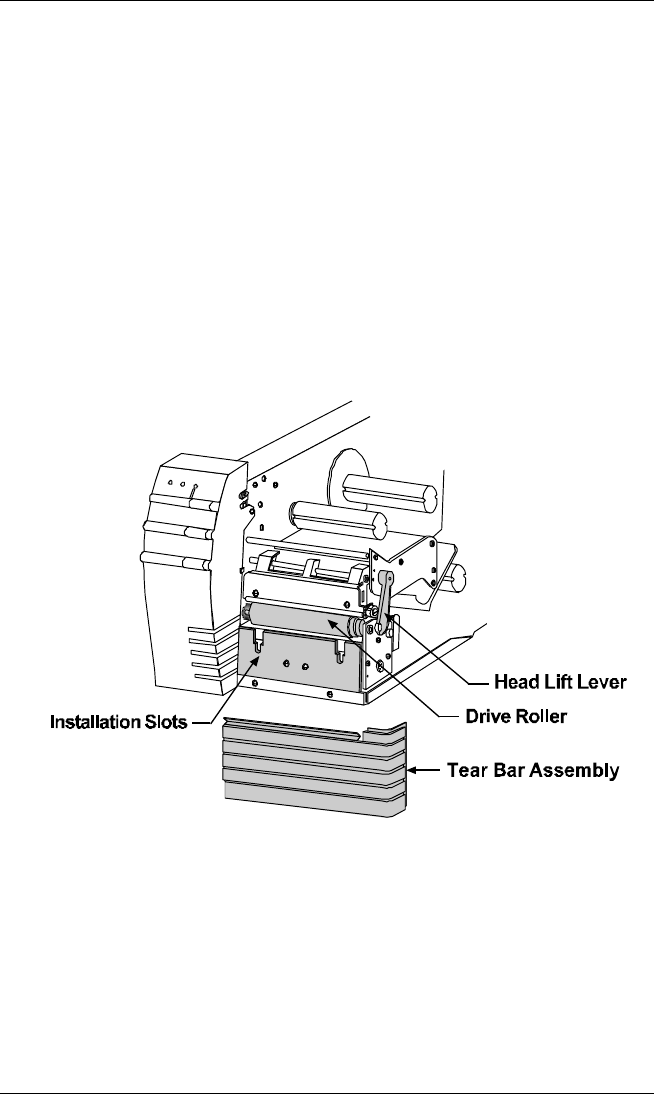

Figure 1-4 Tear-off Assembly Installation
