Getting Started
DMX 400/430 Operator’s Manual 9
1.6 Using Print Media
Installation
The Printer is designed for easy label stock and ribbon installation.
A diagram located under the cover of the Printer shows the feed
path for print media. Simply lift the cover of the Printer from the
right-hand side for installation instructions.

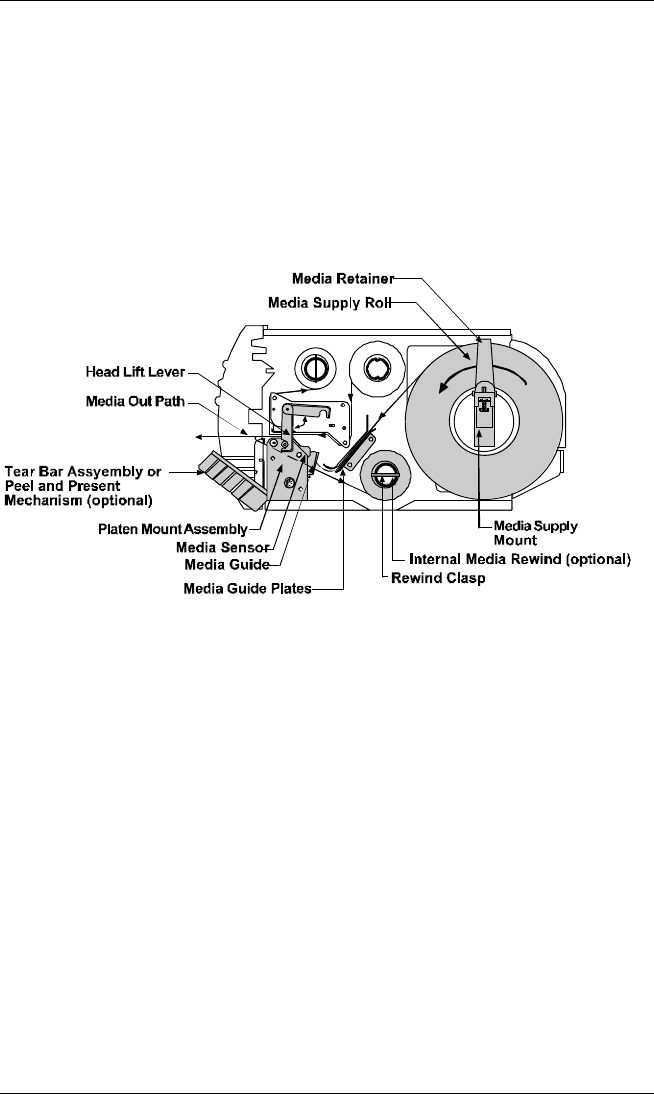

Figure 1-6 Label Loading Diagram
Labels
The Printer uses labels up to 4.65" (118 mm) wide. The maximum
diameter of a roll of labels used in the Printer is 8" (203 mm). If a
label is narrower than 3.5" (89 mm) then the Printhead must be
adjusted. Please refer to Section 5.4, “Adjusting Printhead Pressure
and Support,” for more information.
