Reference Manual for the 54 Mbps Wireless ADSL Firewall Router DG834G
Introduction 2-7
202-10006-01
The Router’s Rear Panel

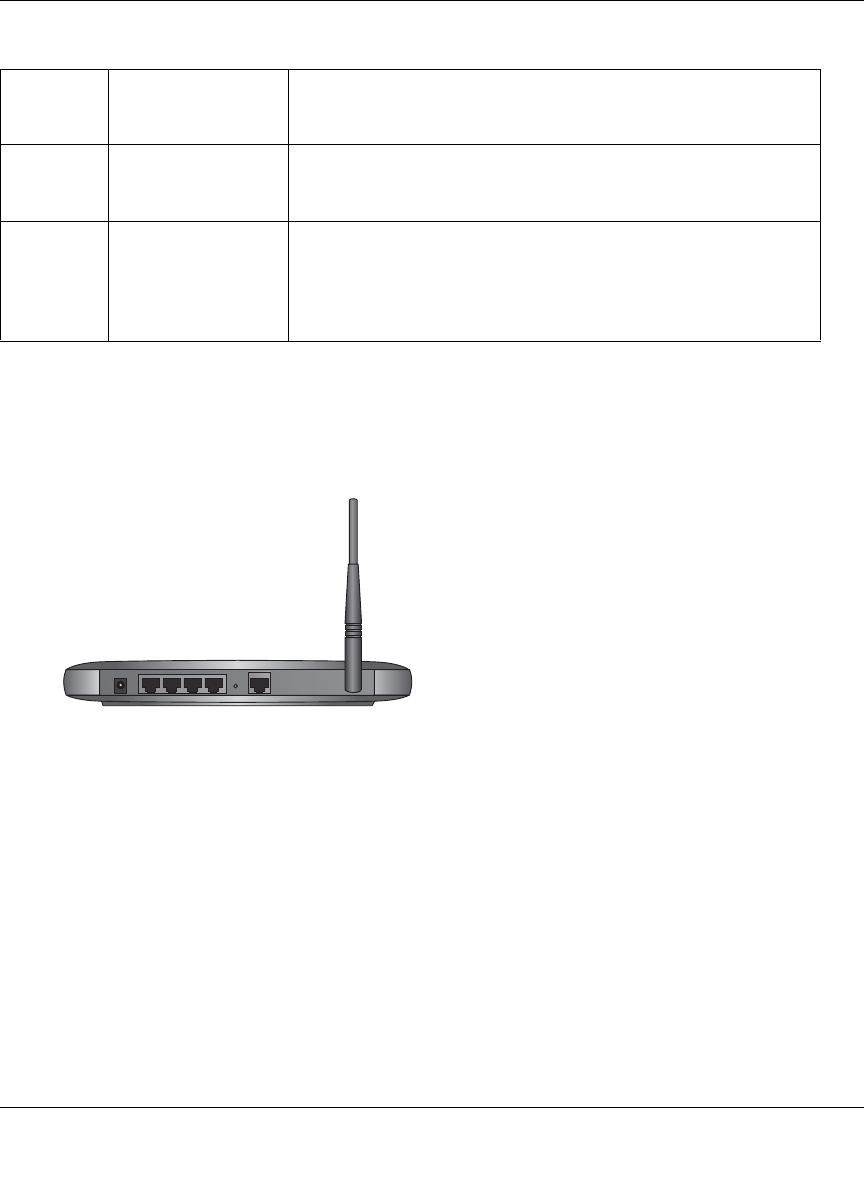

The rear panel of the DG834G 54 Mbps Wireless ADSL Firewall Router (Figure 2-2) contains
port connections.
Figure 2-2: DG834G Rear Panel
Viewed from left to right, the rear panel contains the following elements:
• AC power adapter outlet
• Four Local Ethernet RJ-45 ports for connecting the router to the local computers
• Factory Default Reset push button
• ADSL port for connecting the router to an ADSL line
• Wireless antenna
Internet Blink -- Amber
On -- Green
Blink -- Green
Indicates ADSL training.
The Internet port has detected a link with an attached device.
Data is being transmitted or received by the Internet port.
Wireless On
Off
Indicates that the Wireless port is initialized.
The Wireless Access Point is turned off.
LAN On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Local port has detected link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
Table 2-1. LED Descriptions
54 Mbps Wireless ADSL Firewall Router DG834G
