Reference Manual for the 54 Mbps Wireless ADSL Firewall Router DG834G
3-6 Connecting the Router to the Internet
202-10006-01
.

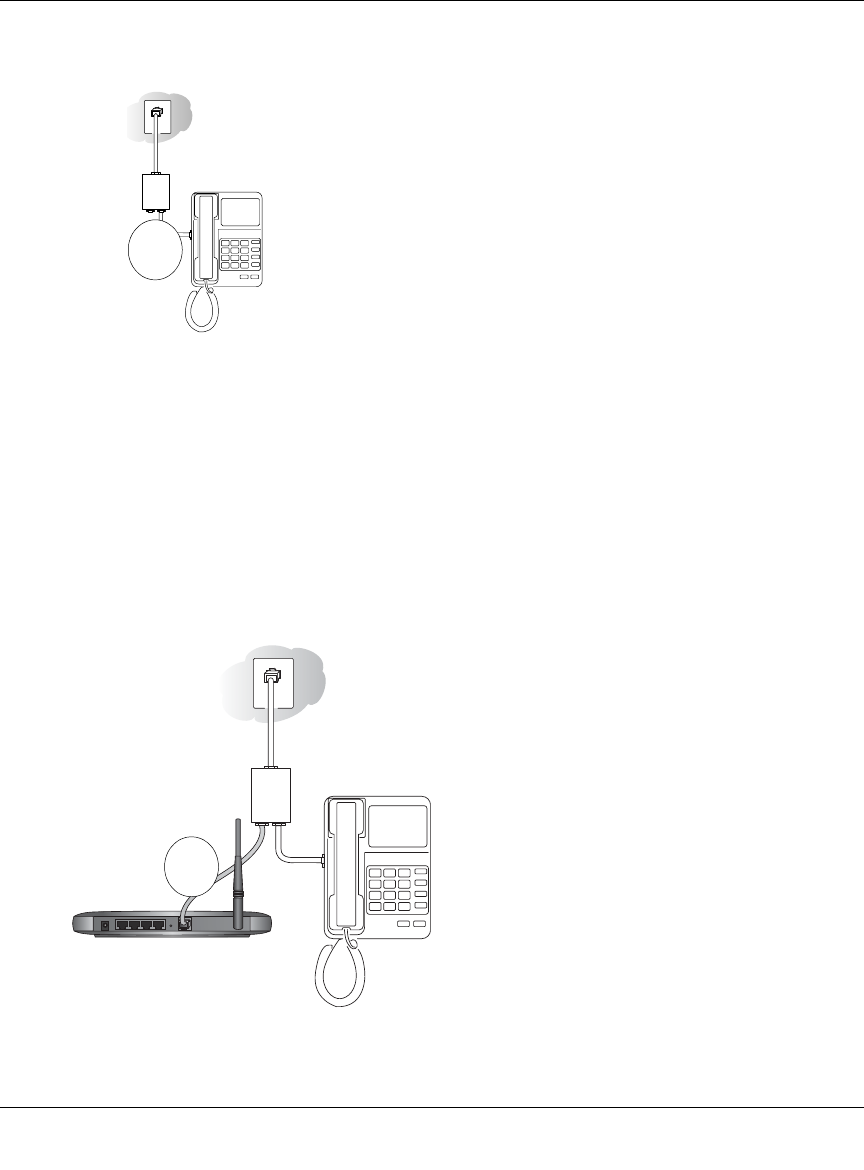

Figure 3-4: Connecting an ADSL microfilter and phone
Note: To use a one-line filter with a separate splitter, insert the splitter into the phone
outlet, connect the one-line filter to the splitter, and connect the phone to the filter.
2. CONNECT THE DG834G TO THE INTERNET.
Note: Improperly connecting a filter to your DG834G wireless router will block your ADSL
connection.
a. Turn off your computer.
b. Connect the ADSL port of the DG834G to the ADSL port (B) of the two-line filter:
Figure 3-5: Connecting the DG834G wireless router to an ADSL microfilter and phone
Phone
DSL
Line
A
Phone
DSL
Line
54 Mbps Wireless ADSL
Firewall Router DG834G
B
