A p A p p e n d p e n d i x Ai x A
Maintenance Data
Service Guide A-1
A.1. Introduction
This chapter contains model-dependent maintenance data for the Extensa Model 67x Series
Notebook Computers. For information common to all members of the Extensa 67x Series, refer to
Chapter 1 through 6 of this manual.
A.2. Features Summary
The Extensa 67x Series Notebook Computers come standard with a 12.1-inch Super VGA Display,
1.6 or 2.1 GB Hard Drive and is powered by a 150 or 160 MHz Pentium processor. Refer to Chapter
1 for a more detailed description of Extensa 67x Series features.
A.3. Field-Replaceable Units (FRUs)
Note: For FRU removal/replacement procedures, refer to Chapter 6 of this manual.
As shown in Figure A-1, all members of the Extensa 67x Series Notebook Computers contain two
major assemblies:
• System Base Assembly
• Cover-Display Assembly

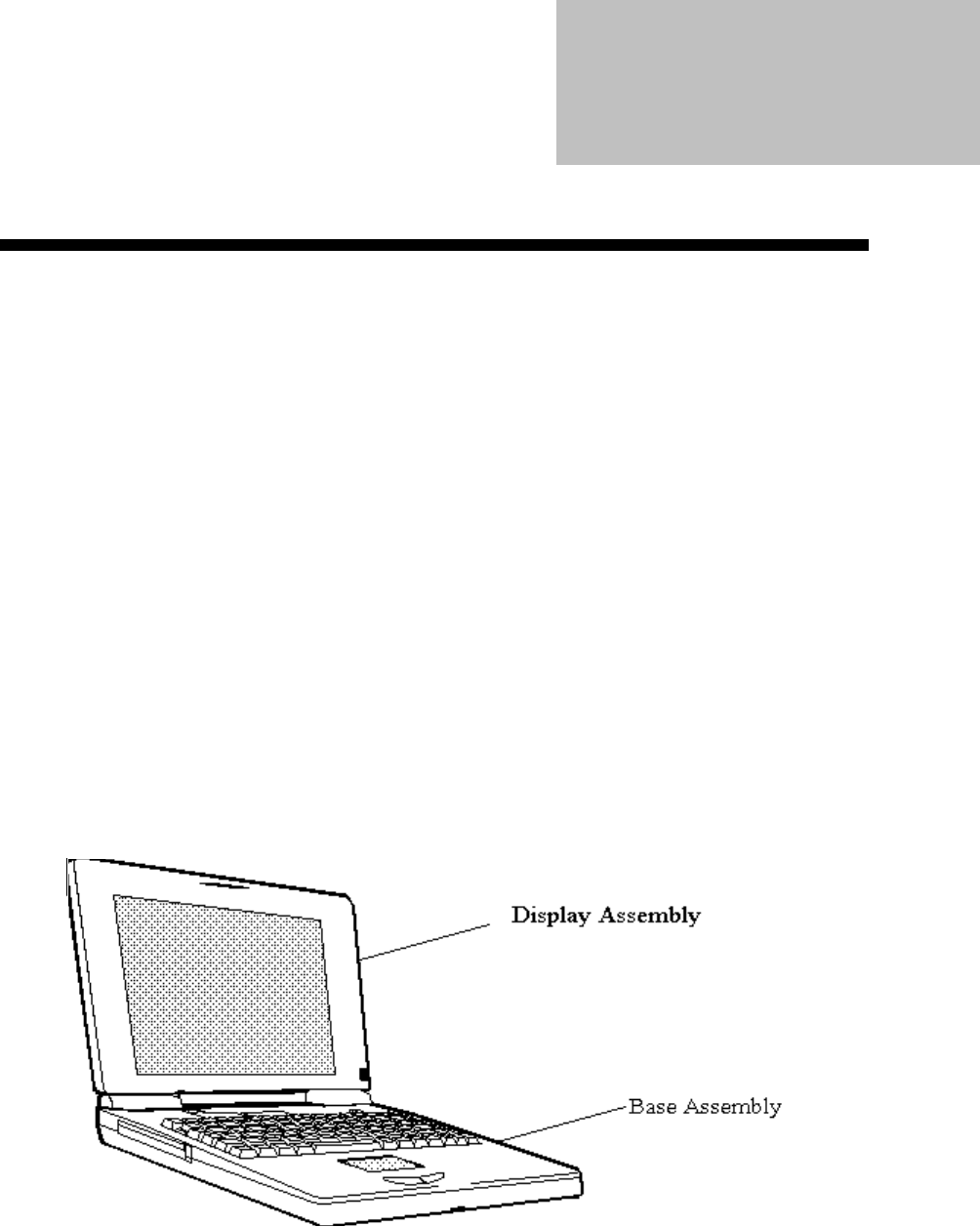

Figure A- 1 Extensa 67x Series Assemblies
