4 Chapter 1

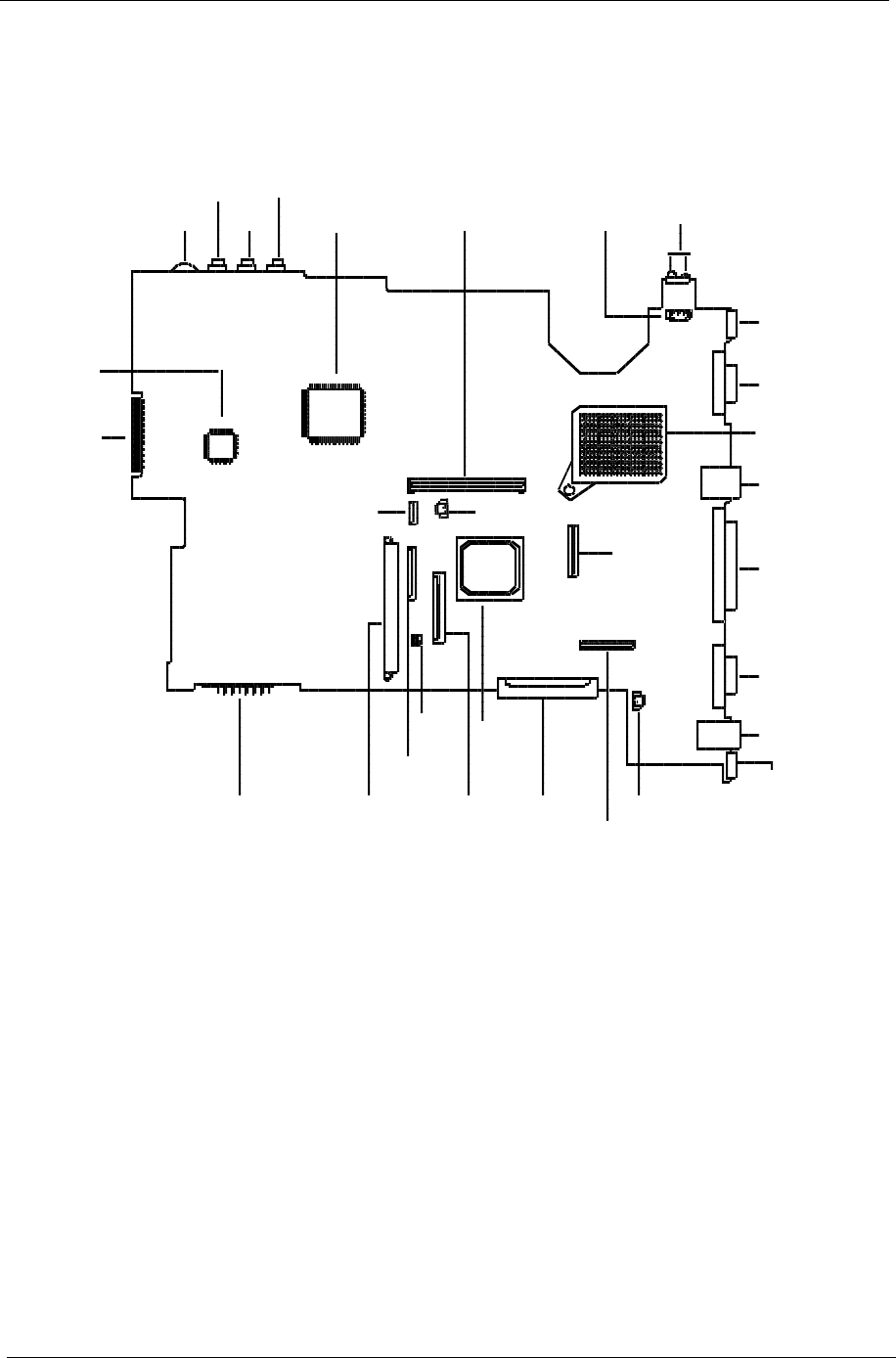

Board Layout
Top View
1 Volume Control 16 Serial Port
2 Microphone-in Port 17 Modem Connector (RJ11)
3 Line-in Port 18 PS/2 Port
4 Line-out Port 19 LCD Cover Switch Connector
5 O2 OZ6933T 20 LED/Inverter Board Connector
6 Cardbus Socket 21 External CD/DVD-ROM Module Connector
7 FAN Connector 22 VGA Chip, Rage Mobility-M6-S
8 FIR 23 Internal Keyboard Connector
9 USB Port 24 SW1 Setting
10 VGA Port 25 Finger Print Check
11 CPU Socket 26 HDD Connector
12 LAN Connector (RJ45) 27 Battery Connector
13 RTC Battery Connector 28 TouchPad Connector
14 LCD FPC Connector 29 Debug Board
15 Parallel Port 30 SMSC LPC47N267
1
2
3
4
67
8
9
10
12
15
16
17
18
19
20
2123
24
25
2627
29
14
13
28
5
11
22
30
