Chapter 6: Connecting Accessories
100-pin Single-ended Probe (E5378A for analyzers with 90-pin pod connectors)
100-pin Single-ended Probe (E5378A for analyzers with 90-pin pod
connectors)
NOTE: For use with Agilent logic analyzer modules 16760A, 16753A, 16754A,
16755A, and 16756A.
The Agilent E5378A is a 34-channel, single-ended, 100-pin probe capable of
capturing data up to the rated maximum state (synchronous) analysis clock
rates of all the supported analyzers, with signal amplitudes as small as 250 mV
peak-to-peak. One E5378A probe is required for a 16760A module and two are
required to support all the inputs on a 16753/54/55/56A module. A 100-pin
connector must be installed on you target system board.

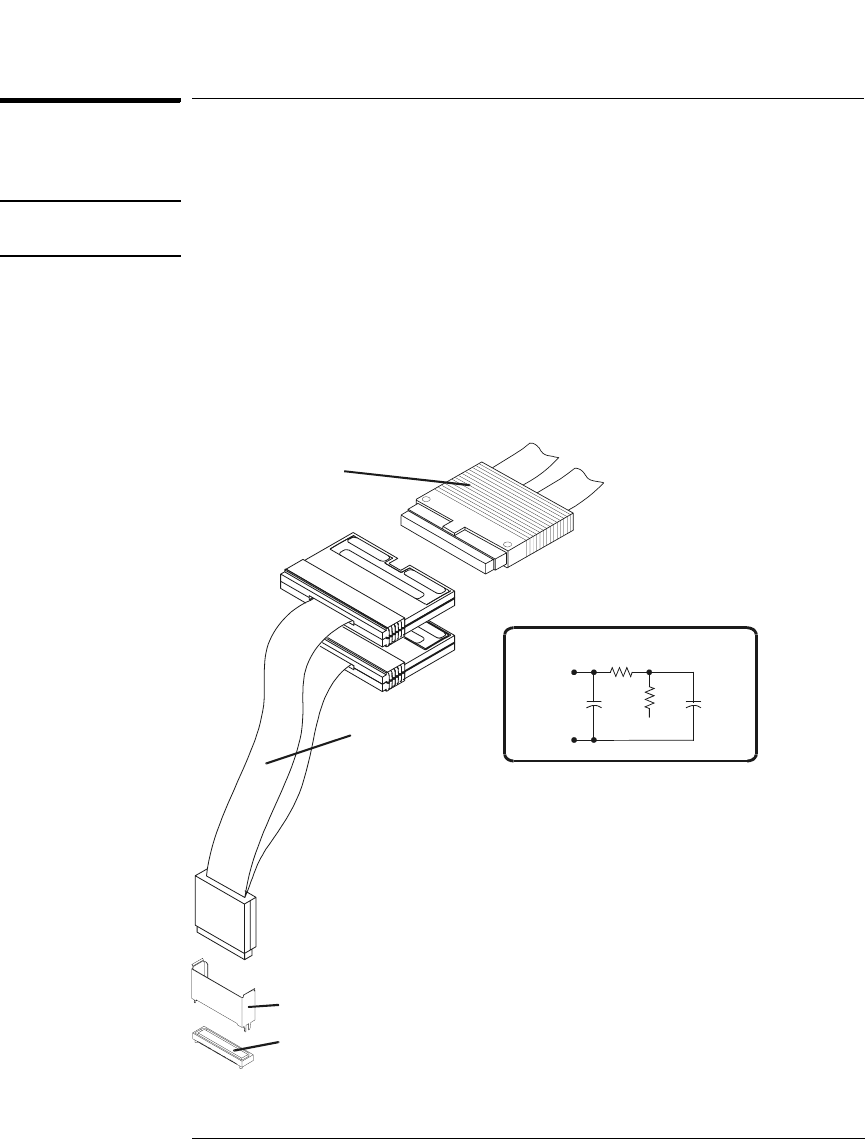

90-pin
Logic Analyzer
Pods
34-channel
Single-ended
100-pin Probe
Shroud
100-Pin
Connector
1.5pF
150ohm
Signal
Ground
20k
0.7pF
Equivalent Load
0.75V
Includes logic analyzer and 100-pin connector
