52
Chapter 3: Installing Logic Analyzer Measurement Modules
16557D Logic Analyzer (3-card module)
16557D Logic Analyzer (3-card module)

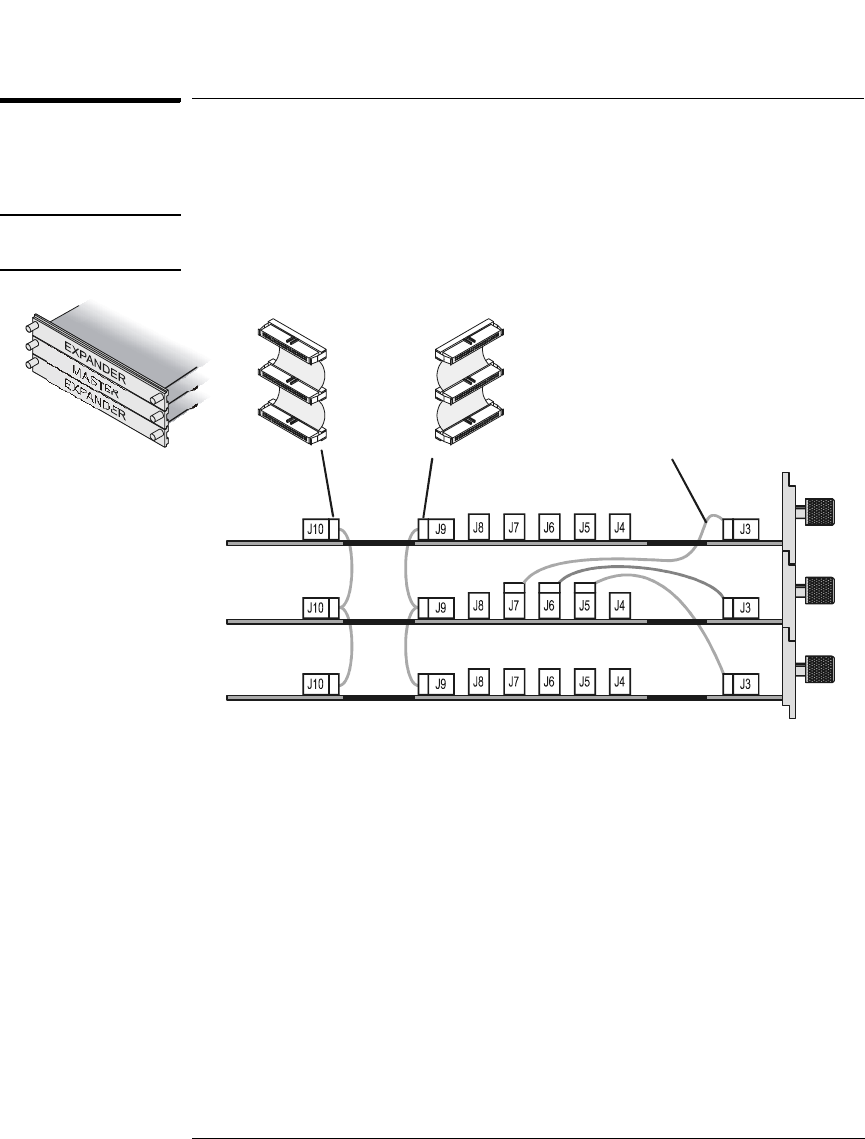

Use two 2 x 25 cables and three 2 x 10 cables to connect the cards as shown.
NOTE: Turn off the mainframe power before removing, replacing, or installing
modules following the procedures on page 42.
Master
Expander
Expander
2x25 Cables
(Need 2)
2x10 Cables
Expander
Expander
Master
