Chapter 3: Installing Logic Analyzer Measurement Modules
16715/16/17A, 16718/19A, 16740/41/42A, 16750/51/52A/B Logic Analyzer (4-card
module)
16715/16/17A, 16718/19A, 16740/41/42A, 16750/51/52A/B
Logic Analyzer (4-card module)

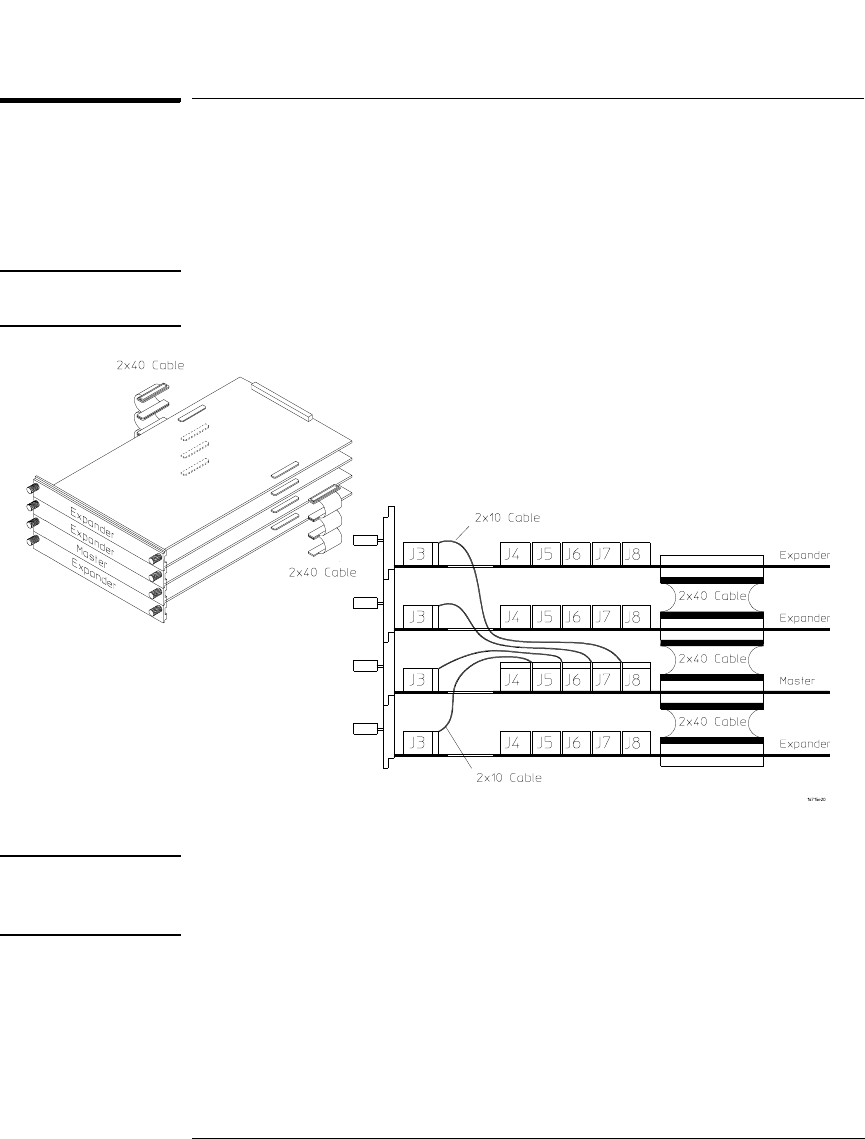

Use four 2 x 10 cables and six 2 x 40 cables (in the accessory pouch) to
connect the modules.
NOTE: Turn off the mainframe power before removing, replacing, or installing
modules following the procedures on page 42
NOTE: Measurement modules with different model numbers may not be connected
together in multi-card modules. However, the 16750A works with the 16750B;
the 16751A works with the 16751B; the 16752A works with the 16752B.
