Chapter 3: Installing Logic Analyzer Measurement Modules
16517/18A Logic Analyzer (4-card module)
16517/18A Logic Analyzer (4-card module)

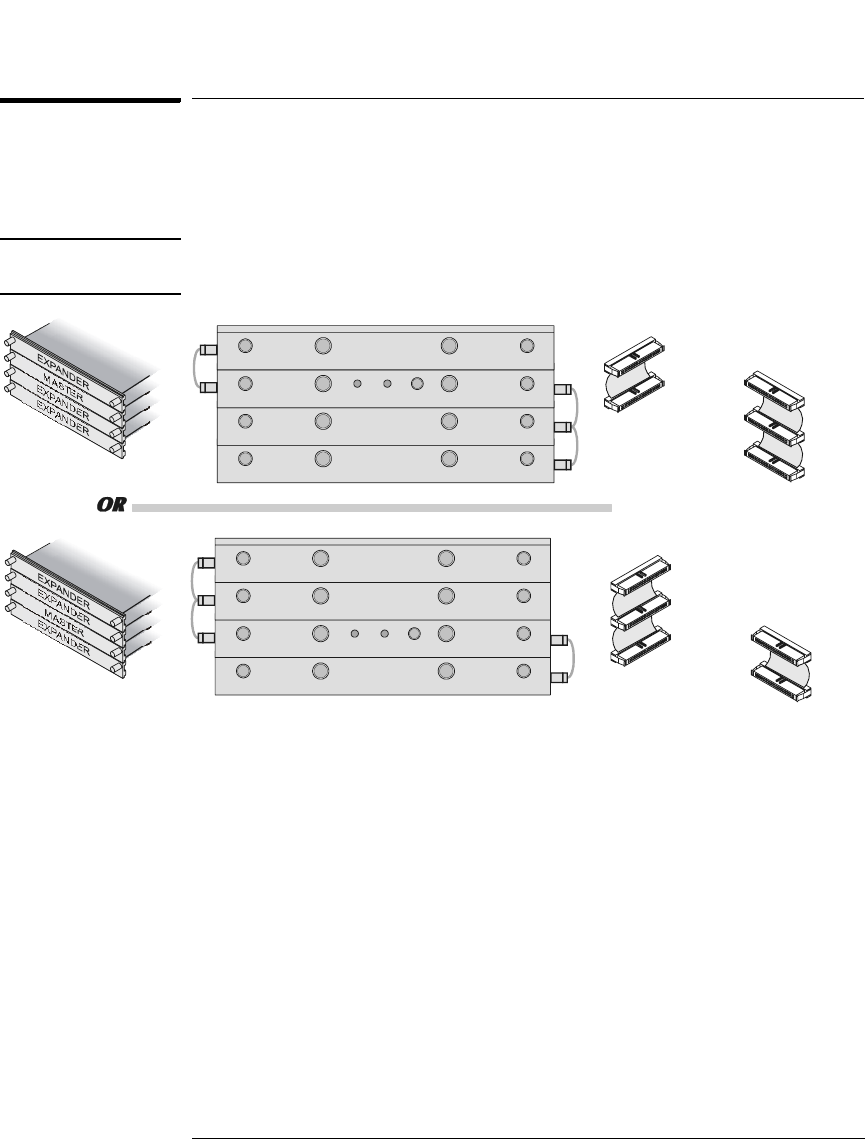

The 16517A is the master card and the 16518A cards are expander cards.
Connect the cards together in one of the two ways shown below.
NOTE: Turn off the mainframe power before removing, replacing, or installing
modules following the procedures on page 42.
3 Connector
Cable
2
C
onnector
Cable
Expander
Expander
Expander
Master
Expander (16518A)
Expander (16518A)
Expander (16518A)
Master (16517A)
3 Connector
Cable
2 Connector
Cable
Expander
Expander
Expander
Master
Expander (16518A)
Expander (16518A)
Expander (16518A)
Master (16517A)
