107
Chapter 6: Connecting Accessories
100-pin Differential Probe (E5379A for analyzers with 90-pin pod connectors)
100-pin Differential Probe (E5379A for analyzers with 90-pin pod
connectors)
NOTE: For use with Agilent logic analyzer modules 16760A, 16753A, 16754A,
16755A, and 16756A.

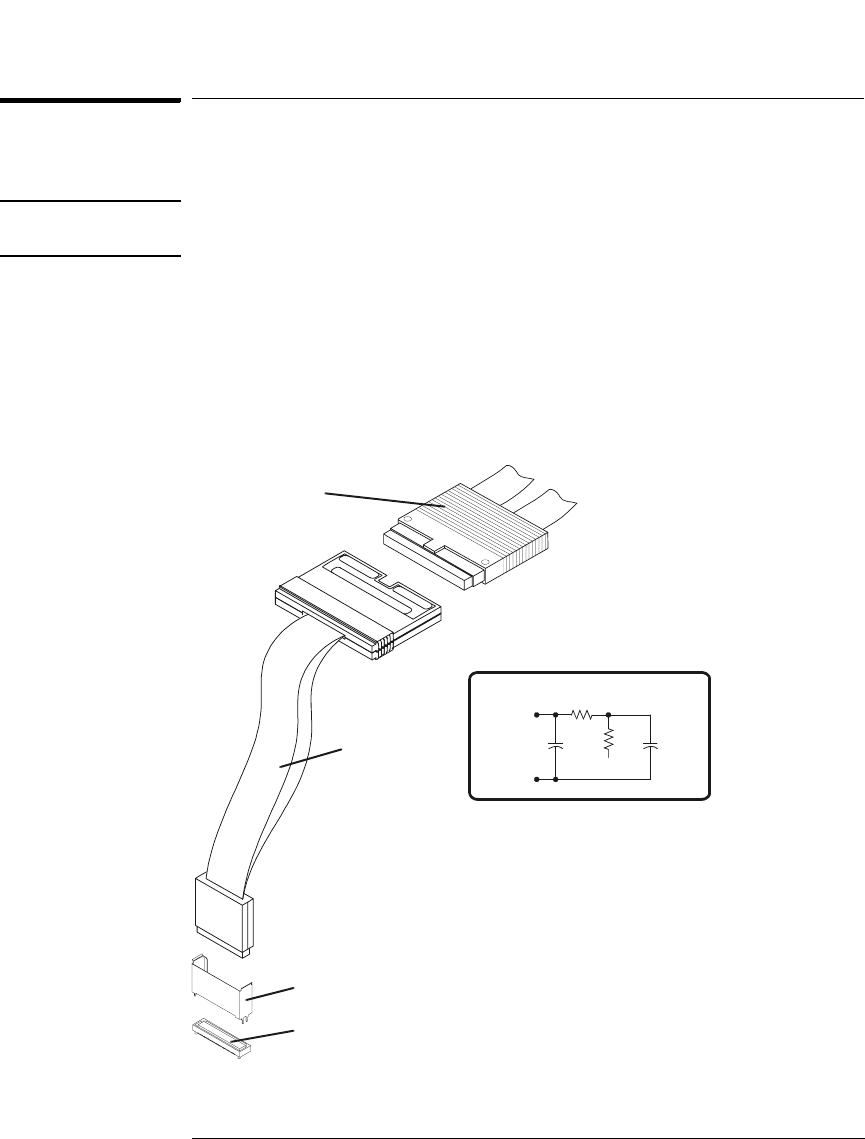

The Agilent E5379A is a 17-channel, 100-pin differential probe capable of
capturing data up to the rated maximum state (synchronous) analysis clock
rates of all the supported analyzers, with differential signal amplitudes as
small as 200 mV peak-to-peak (100 mV peak-to-peak on both positive and
negative inputs). Two E5379A probes are required to support all the inputs on
one 16760A. Four are required for one 16753/54/55/56A module. A 100-pin
connector must be installed on your target system board.
16-channel
Single-ended
100-pin Differential
Probe
Shroud
100-Pin
Connector
90-pin
Logic Analyzer
Pods
1.5pF
150ohm
Signal
Ground
20k
0.7pF
Equivalent Load
0.75V
Includes logic analyzer and 100-pin connector
