Chapter 2: Connecting and Configuring Hardware
To connect a 16701B expander frame
To connect a 16701B expander frame
1 Install your measurement modules in the 16701B expander frame.
Module installation instructions are on page 42. For information on
specific measurement modules go to:
2 Connect either a 30 cm (12 inch) or 90 cm (36 inch) interconnect cable
to the expander and system frames.
3 Tighten the connector screws with the screwdriver provided.
4 Connect the power cable to the 16701B.
5 Power up the 16700B or 16702B system.
Module Type Page
Logic Analyzer 45
Oscilloscope 71
Pattern Generator 87

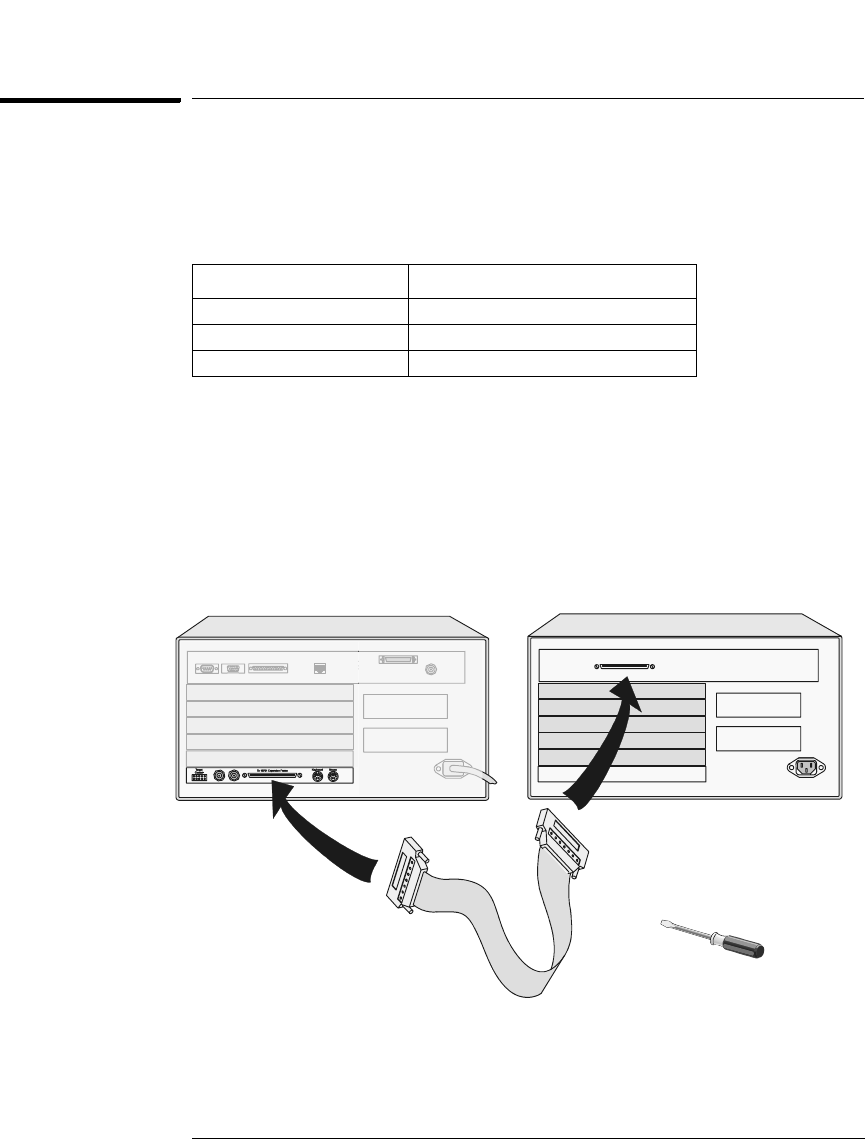

16701B Expander Frame
16700B or 16702B
16701B
Interconnect
Cable
Screwdriver
