Connecting the Probe
51
Agilent J3919A
Agilent J3972A

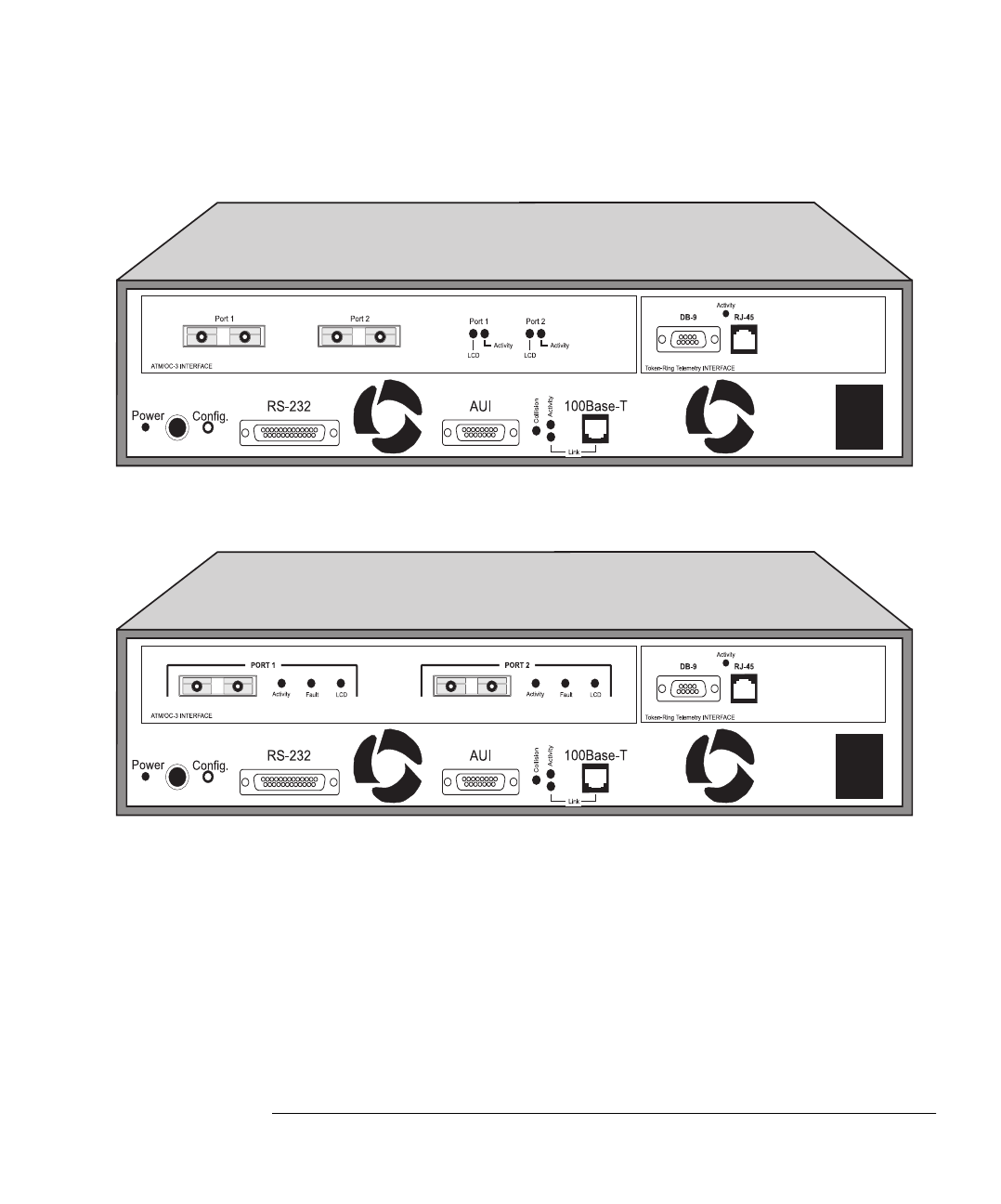

Figure 3-3: The Probe’s Rear Panel (Token-Ring Option Shown)
Connectin
g
to 10MB/s Ethernet Telemetry Networks
You can connect the probe to the network either by connecting the RJ-45
connector to a 10Base-T/100Base-TX half-duplex network or by connecting the
AUI connector to a 10MB/s Ethernet network. Use the following procedures to
connect the probe’s AUI connector to a 10MB/s Ethernet network for telemetry
communications. Never use both the AUI and RJ-45 connectors.
