12. Alignment
1
2
3
Image 12-54
Rotate image
3. Select Warp adaptation, angle.
4. Use the or key to change the rotation Angle.
Or,
press ENTER to open the Warping Adaptations window. Use the or key to change the Angle.

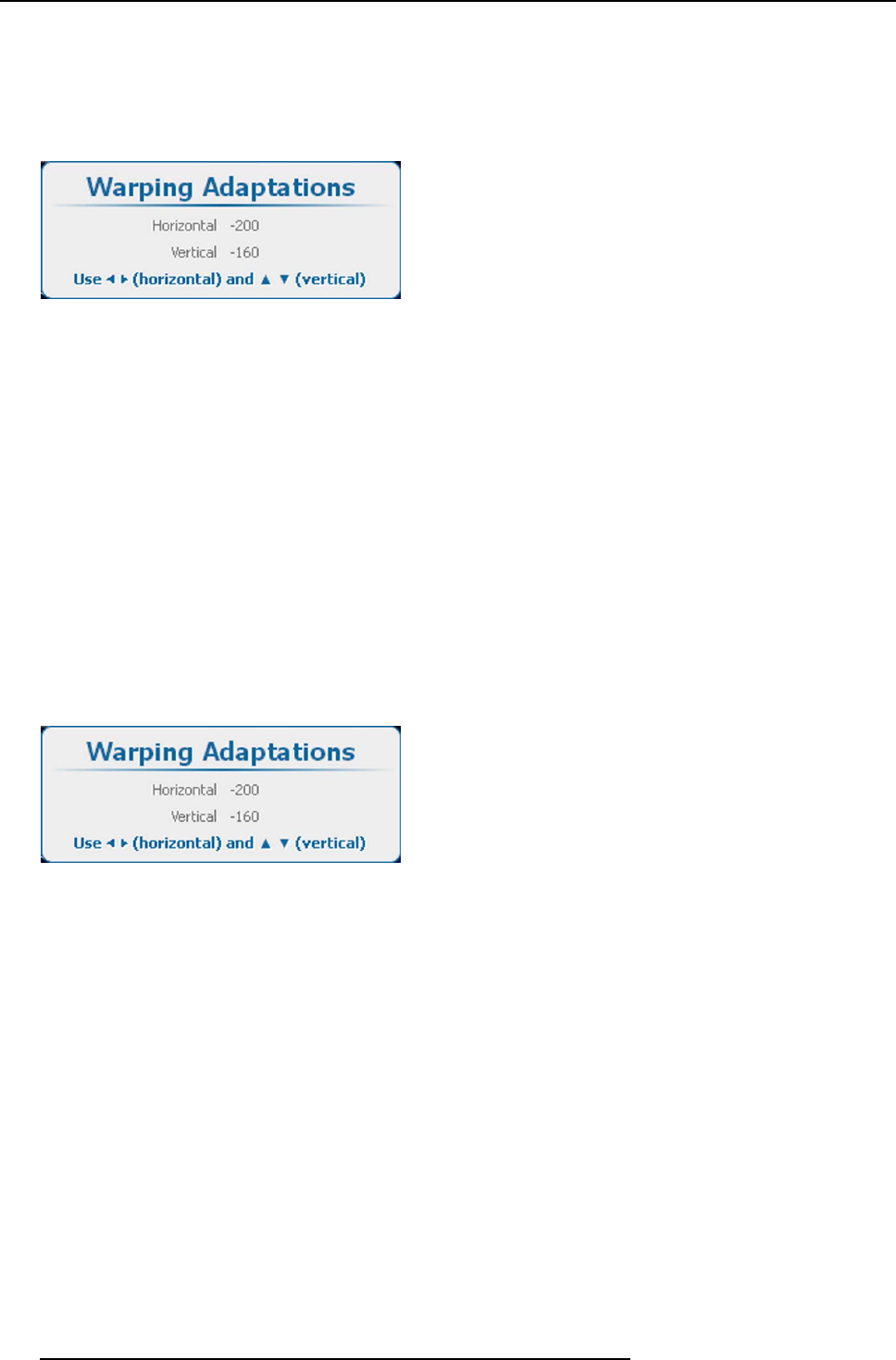

Image 12-55
Warping adaptation, angle
12.8.14 Hardware Reset
What can be done ?
During some combinations of adjustments, it is possible that the warping get stuck. Than it is possible to reset the board and restart
from a clean adjustment.
How to reset
1. Use the arrow keys to select the Reset icon on the general icon bar
at the bottom of the Warp ad just window.
Image 12-56
Hardware reset
The hardware will restart. It can take a while until the warp unit is available again.
12.8.15 OSD opacity
About the opacity of the OSD menus
During the warp adjustment process the OSD menu is displayed on top the warp grid. To see the grid and the grid points, reduce
the opacity of the OSD menu.
