3. Physical installation
1
2
3
3

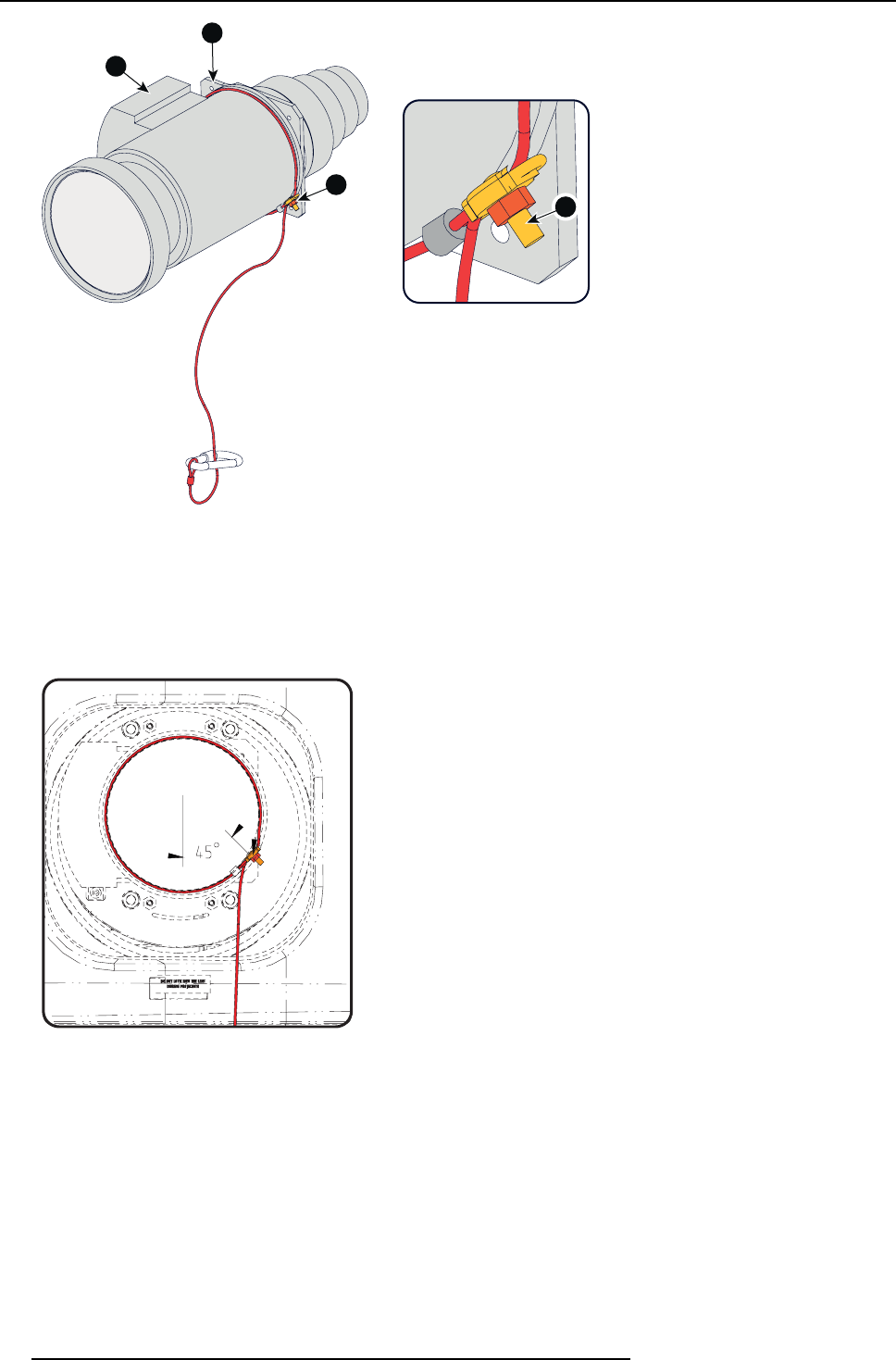

Image 3-29
Lens safety cable
1 Lens motor block
2 Mounting flange
3Clamp
2. Insert both cable sides into the clamp;
Strap the cable and make sure that the clamp is positioned on 45° from the bottom to avoid interference of the cable with the
lens locking mechanism.
Secure the cable by fixating the nut of the clamp.
Image 3-30
Clamp position
3. Turn the cable with hook lock around the carry handle and hook the hook lock around the cable.
