13. Projector Control

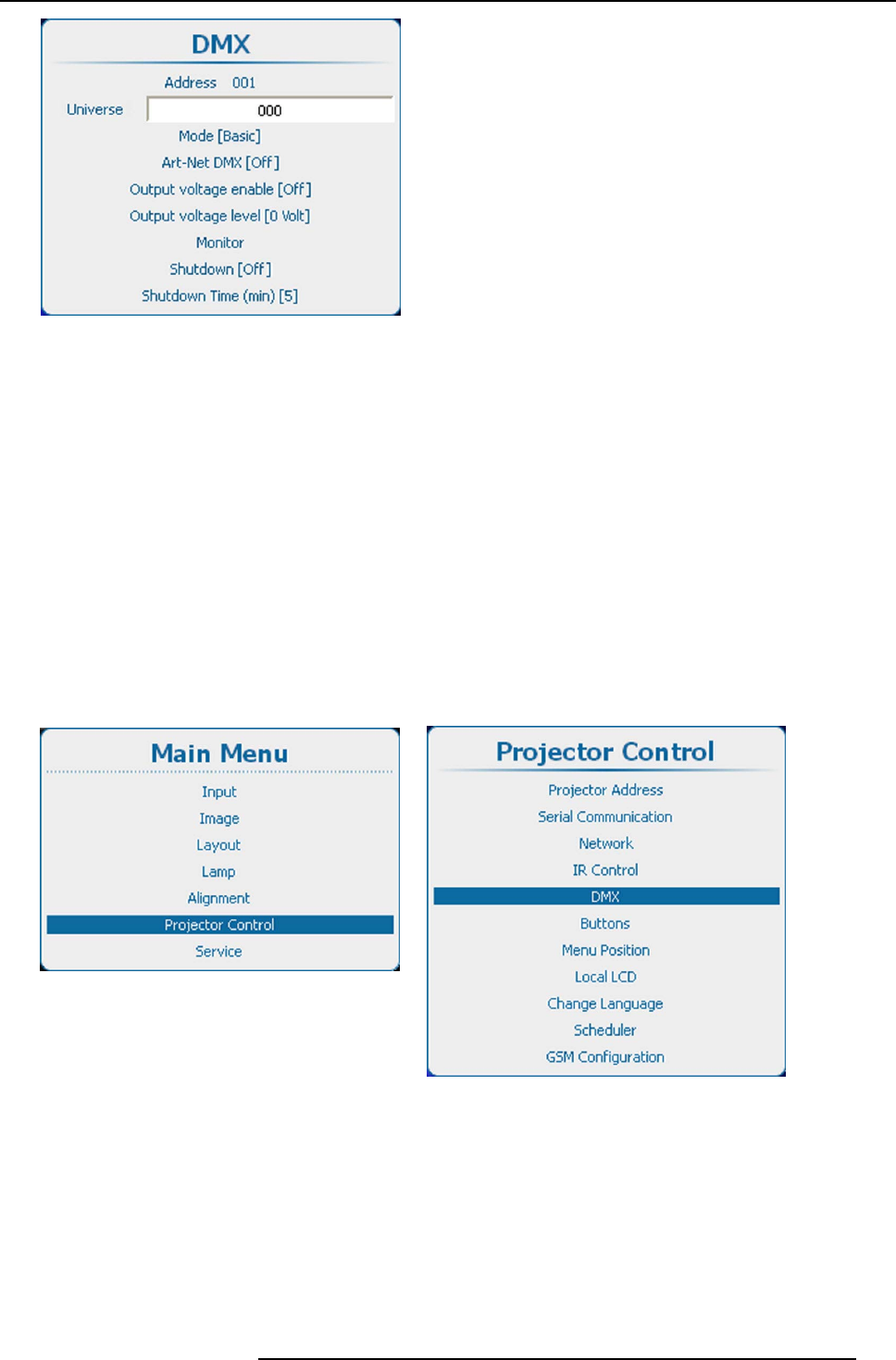

Image 13-68
DMX universe
3. Use the or key to change the selected character.
Use the or key to select another character.
Note: Digits can be en tered with the digit k eys on the remote control or the loca l keypad. When a digit is entered in that way,
the next character will be selected automatically.
13.7.3 DMX mode
What can be done ?
3 modes for DMX are available:
Basic which has currently 2 channels implemented.
Extended which has currently 10 channels implemented
Full which has currently 9 channels implemented and a 10th free channel.
Depending on the DMX application the correct mode has to be selected.
How to set the mode
1. Press Menu to activate the menus and select Projector Control DM X Universe.
Image 13-69
Main menu, projector control
Image 13-70
Projector control, DMX
