8. Operating the Remote Control

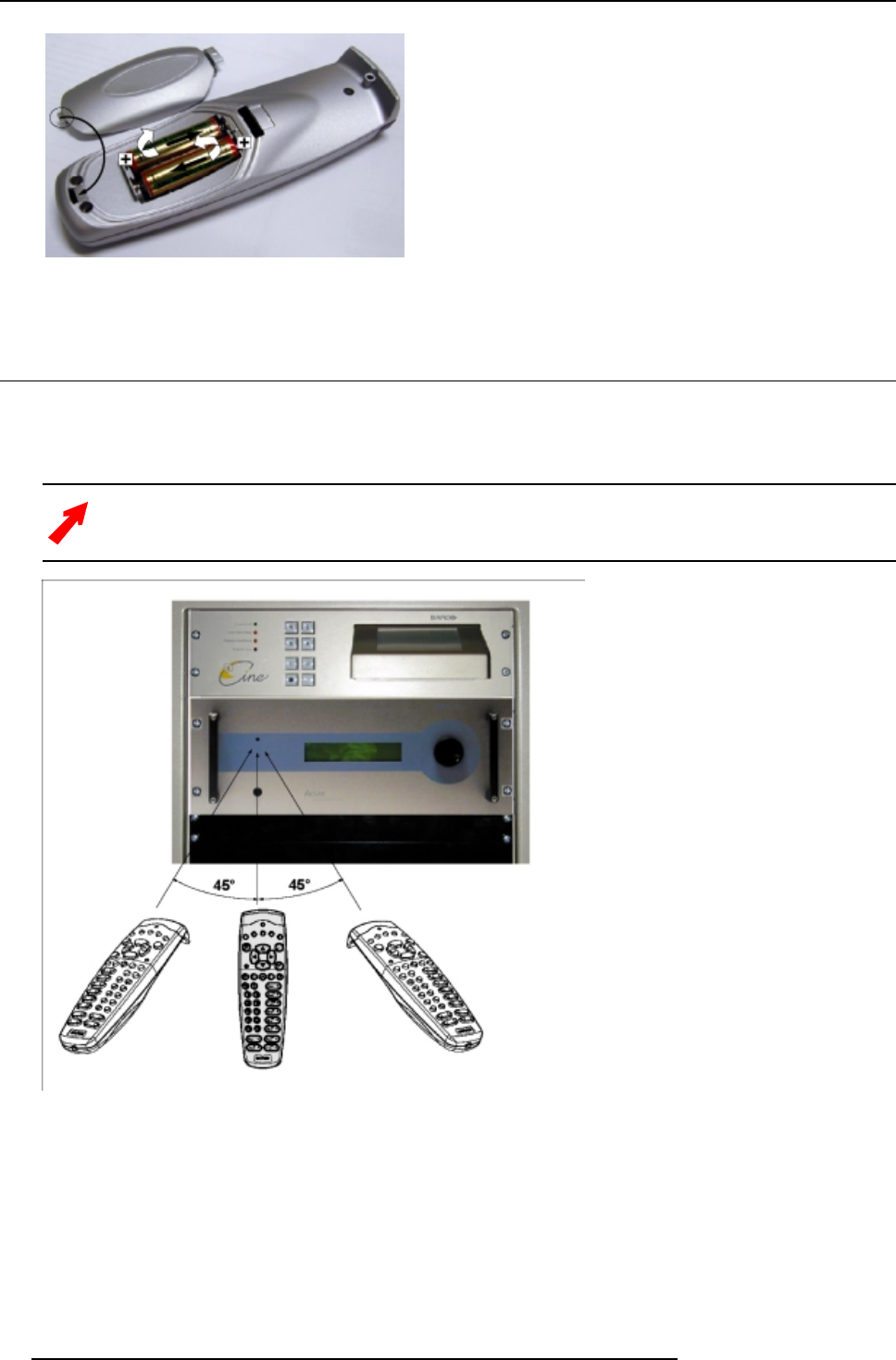

Image 8-3
Battery removal
8.2 Operating the Remote Control
Remote Control operation
This remote control includes a battery powered infrared transmitter which allows the user to control the ACSAR remotely via its own
built-in infrared receiver.
If backlight and RC operation indicator lights up too long or continuously, batteries need to be replaced.
Image 8-4
Remote control operation angle
When operating the remote control unit, point it at the remote sensor, located on the front side of the ACSAR. The remote control
unit is operable up to 9 m from the unit and within a 45 angle on each side of the sensor.
When a key on the remote control is pressed, backlight is activated automatically. That allows the user to operate the remote control
in a dark room. Backlight is turned off automatically a few seconds after the last key activation.
Remote control operation’s difficulties
• The remote control unit may not operate if there are objects placed between it and the display.
• Operational distances will gradually become shorter as the batteries begin to wear out, replace weak batteries with new ones
as soon as possible.
30
R5976519 ACSAR 12122002
