Chapter 10 Operation
Daylight Display Systems 137 BARCO DLite Digitizer

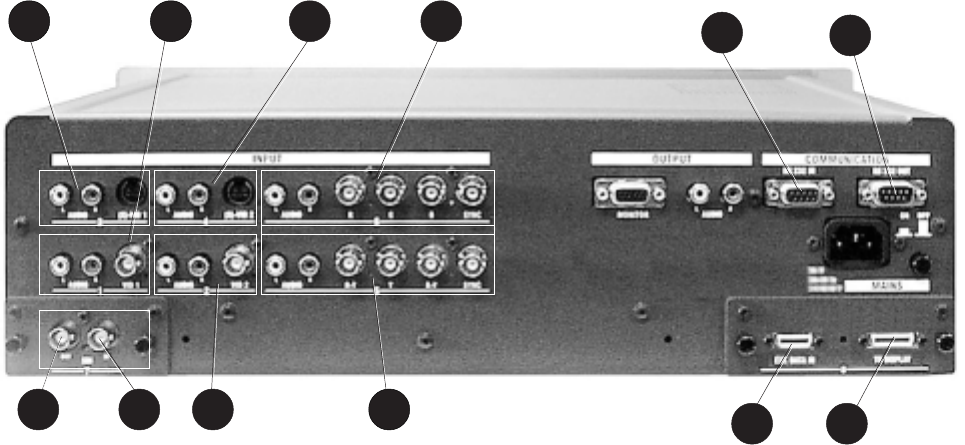

Rear Panel Inputs
Describes the connections of the input sources, output signals to display and control signals.
INPUT 1 (SELECTION 1)
Video 1 (BNC)
CVSB: 1Vpp±3dB (0.7V Video+0.3V Sync) 75 Ohm termination
Audio L & R (Cinch)
Input Impedance: 47kOhm
Input Level: max. 2Vpp
INPUT 2 (SELECTION 2)
Video 2 (BNC)
CVSB: 1Vpp±3dB (0.7V Video+0.3V Sync) 75 Ohm termination
Audio L & R (Cinch)
Input Impedance: 47kOhm
Input Level: max. 2Vpp
INPUT 3 (SELECTION 3)
S-Video 1 (4-pins DIN)
Y: 1Vpp±3dB (0.7V Video+0.3V Sync) 75 Ohm termination
Note: Y-input can be configurated as Composite Video input
C(NTSC): 0.286Vpp±3dB 75 Ohm termination
C(PAL): 0.3Vpp±3dB 75 Ohm termination
Audio L & R (Cinch)
Input Impedance: 47kOhm
Input Level: max. 2Vpp
INPUT 4 (SELECTION 4)
S-Video 2 (4-pins DIN)
Y: 1Vpp±3dB (0.7V Video+0.3V Sync) 75 Ohm termination
Note: Y-input can be configurated as Composite Video input
C(NTSC): 0.286Vpp±3dB 75 Ohm termination
C(PAL): 0.3Vpp±3dB 75 Ohm termination
Audio L & R (Cinch)
Input Impedance: 47kOhm
Input Level: max. 2Vpp
3 1 4 5
7a7b
2 6
8b8a
11a
11b
