Chapter 4 Control Software/Setup
Daylight Display Systems 27 BARCO DLite Software
2.TILE POSITIONING

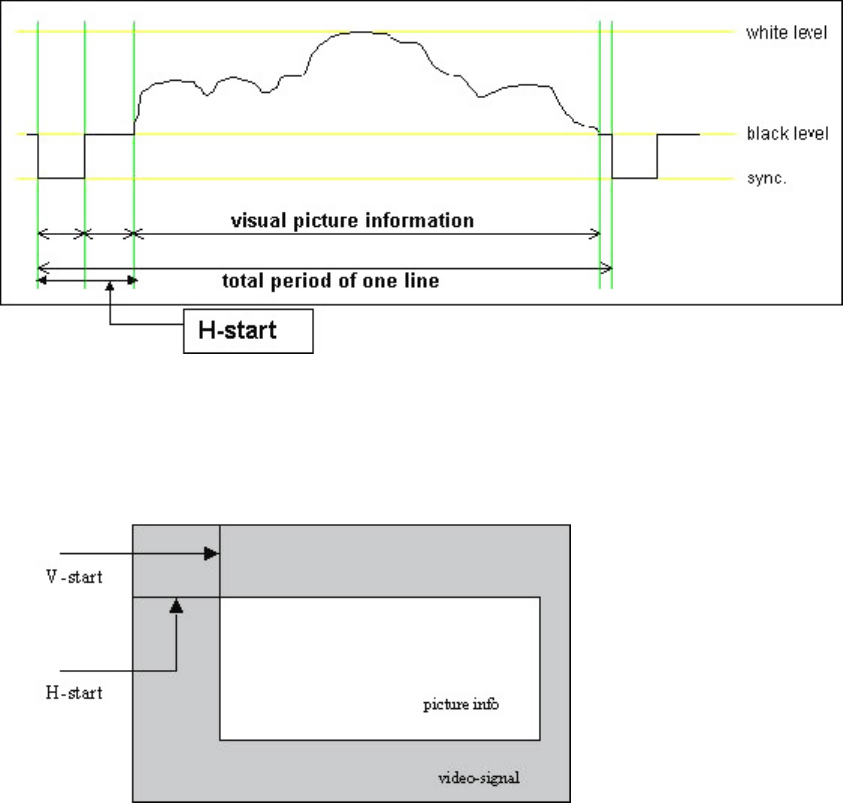

Define the horizontal and vertical start position of the incoming video. The information of one video image
consists of several video lines. On such line contains more information than only the visual picture information
(e.g. sync pulse, color burst,). The time between the start of the line and the start of the picture information
is defined as the horizontal start position.
In the same way the information of one video image contains more information than only the several video
lines. The time between the start of the image information and the first actual video line with picture
information is defined as the vertical start position.
Do as follows:
1.Select the desired horizontal and vertical start position values
2.Clicking TILE POSITIONING, gives each tile its individual position in relation to the incoming video-signal,
each tile position is calculated according to the start position.
The progress of the positioning is displayed in the DLite Display Progress Info-window. When done, scroll
through it using of the scrollbar or save the log by opening a popup menu with the right mouse button.
