OUTPUT DATA
(8B) - TO DELITE DISPLAY
OUTPUT SDI
(7B) - SDI LOOP THROUGH
525/625 interlaced
270 Mbit/s transmission
coax (75 ohm)
Output Level: -65 dB <input level< +6 dB
OUTPUT RGBHV (DD15)
(9) - RGBHV (DD15)
RED (75 OHM OUTPUT IMPEDANCE)
Default: 0.7 Vpp
Adjustable: 0.5Vpp to 1.0 Vpp via User interface
GREEN (75 OHM OUTPUT IMPEDANCE)
Default: 0.7 Vpp
Adjustable: 0.5Vpp to 1.0 Vpp via User interface
BLUE (75 OHM OUTPUT IMPEDANCE)
Default: 0.7 Vpp
Adjustable: 0.5Vpp to 1.0 Vpp via User interface
H/CS: TTL OUTPUT
Setup TTL-Level polarity via User interface
V: TTL OUTPUT
Setup TTL-Level polarity via User interface
OUTPUT AUDIO (CINCH)
(10) - AUDIO L & R (CINCH):
Output Impedance: low Z
Output Level: -65 dB <input level< +6 dB
OUTPUT COMMUNICATION PORT
(11B) RS232 OUT
RS232 Output Port allows a communication link for PC or MAC to the next Digitizer in chain.
POWER
(12A) AC POWER INPUT 100-240 V AC
50/60 Hz Auto ranging
(12B) - POWER SWITCH

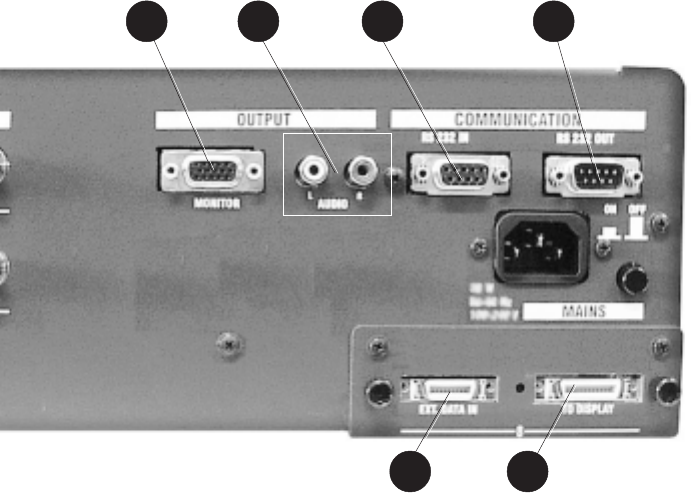

Rear Panel Outputs
Describes the connection of output signals.
