Chapter 5 Control Software/System Control
Daylight Display Systems 39 BARCO DLite Software

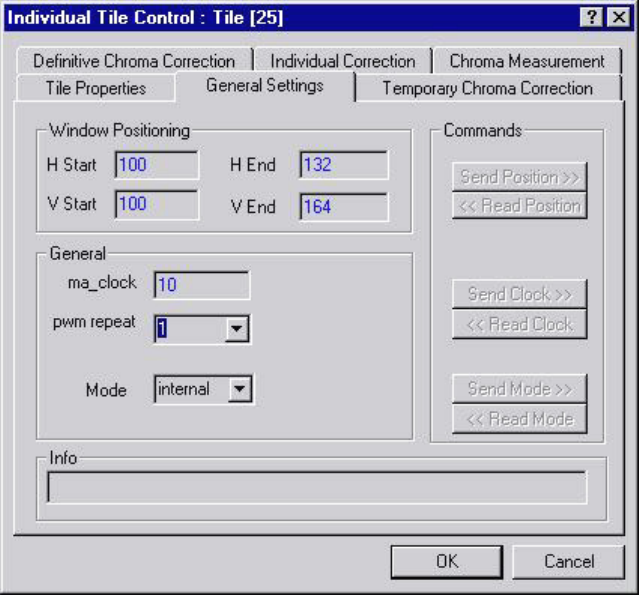

2.General Settings
WINDOW POSITIONING
1. Read the actual window positioning by clicking the READ POSITION command button.
2. Change the positioning of the tile (horizontal and vertical start and end position) by typing the desired values
in the corresponding boxes.
3. For actually changing the tiles window positioning, send these changed values to the tile by clicking the
SEND POSITION command button.
GENERAL
1. Read the actual ma_clock and PWM repeat by clicking the READ CLOCK command button.
2. Change the ma_clock and the PWM repeat by typing the desired values in the corresponding boxes.
3. Send these values to the tile by clicking the SEND CLOCK command button.
4. Put the tile in internal or external mode by choosing the desired mode and send it to the tile by clicking the
SEND MODE command button
