Removing a Disk Drive From the Horizontal Position
The figures in this section show a diskette drive in the lower
horizontal drive bay, but you can use the same instructions to
remove a hard disk drive from the lower bay or to remove a
diskette drive from the upper bay.
Note
Before removing a disk drive from the horizontal position,
you must remove the drive from the vertical position. See
page 7-21.
Follow these steps to remove a drive from a horizontal drive bay:
1.

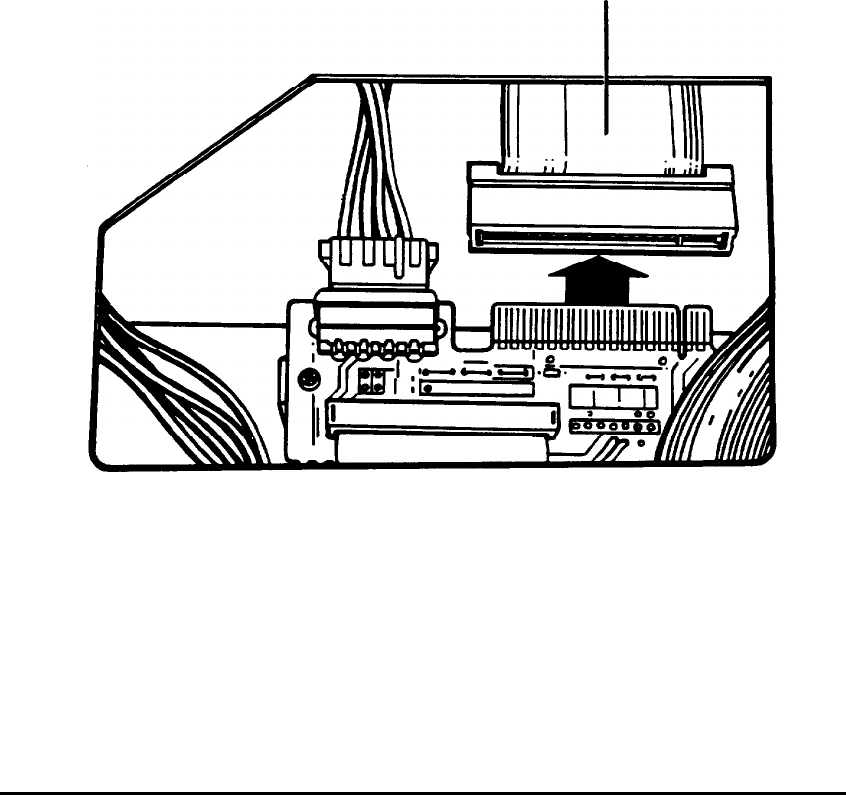

Remove the disk drive ribbon cable from the back of the
drive, as shown below.
ribbon cable
Installing and Removing Disk Drives
7-33
