Chapter 2 System Information
31

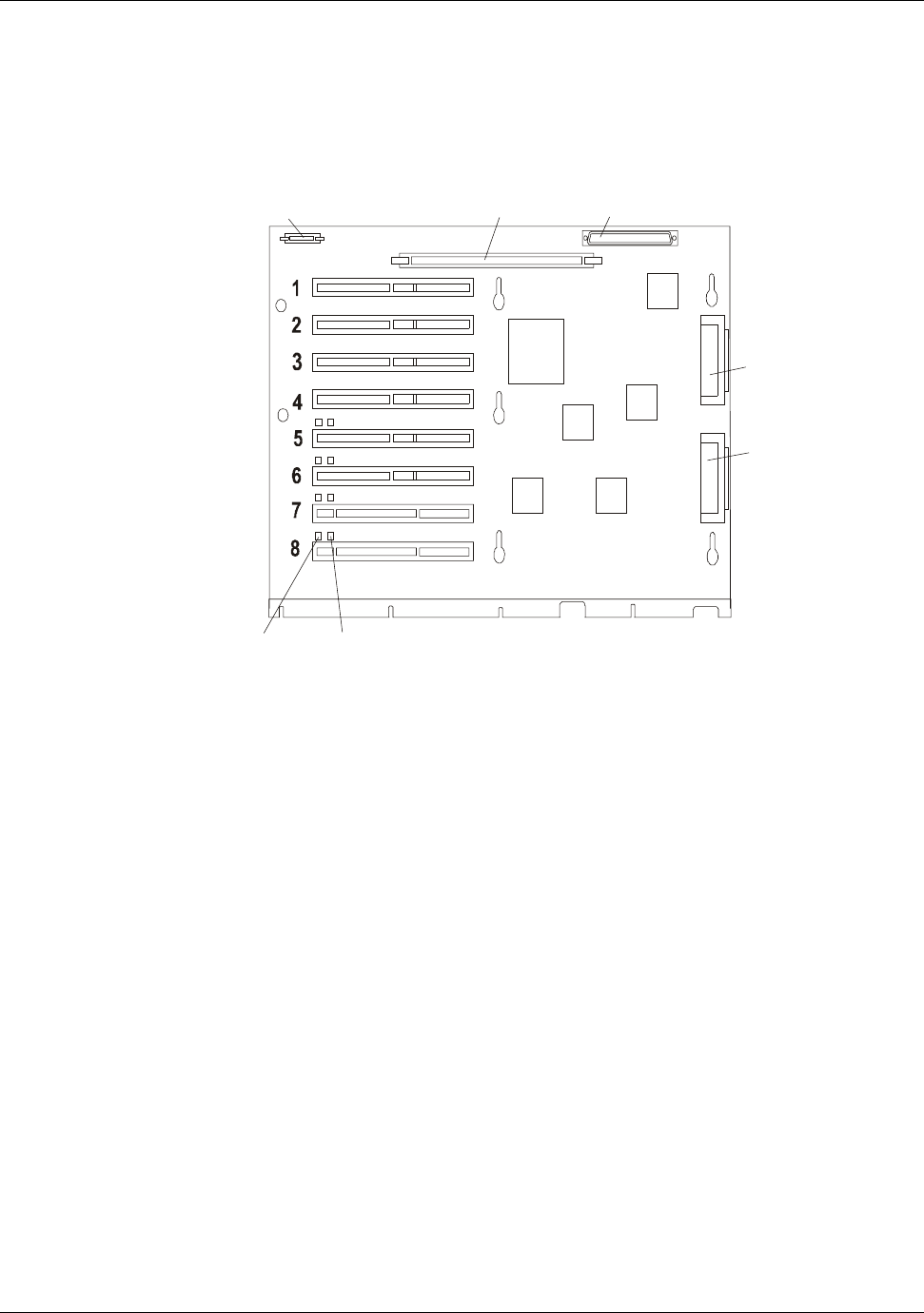

I/O Board Illustration
The figure shows locations of the major components on the I/O board.
+5V
33 MHz/64 Bit
+3.3V or +5V
66 MHz/64 Bit
Attention LEDs
Power LED
s
Slots 1- 6
Non-hot-plug
Hot-plug
Slots 7 and 8
SCSI B
SCSI A
SE SCSI
I/O Memory
Remote
Management
Slots 1- 4
Slots 5- 8
I/O Board
