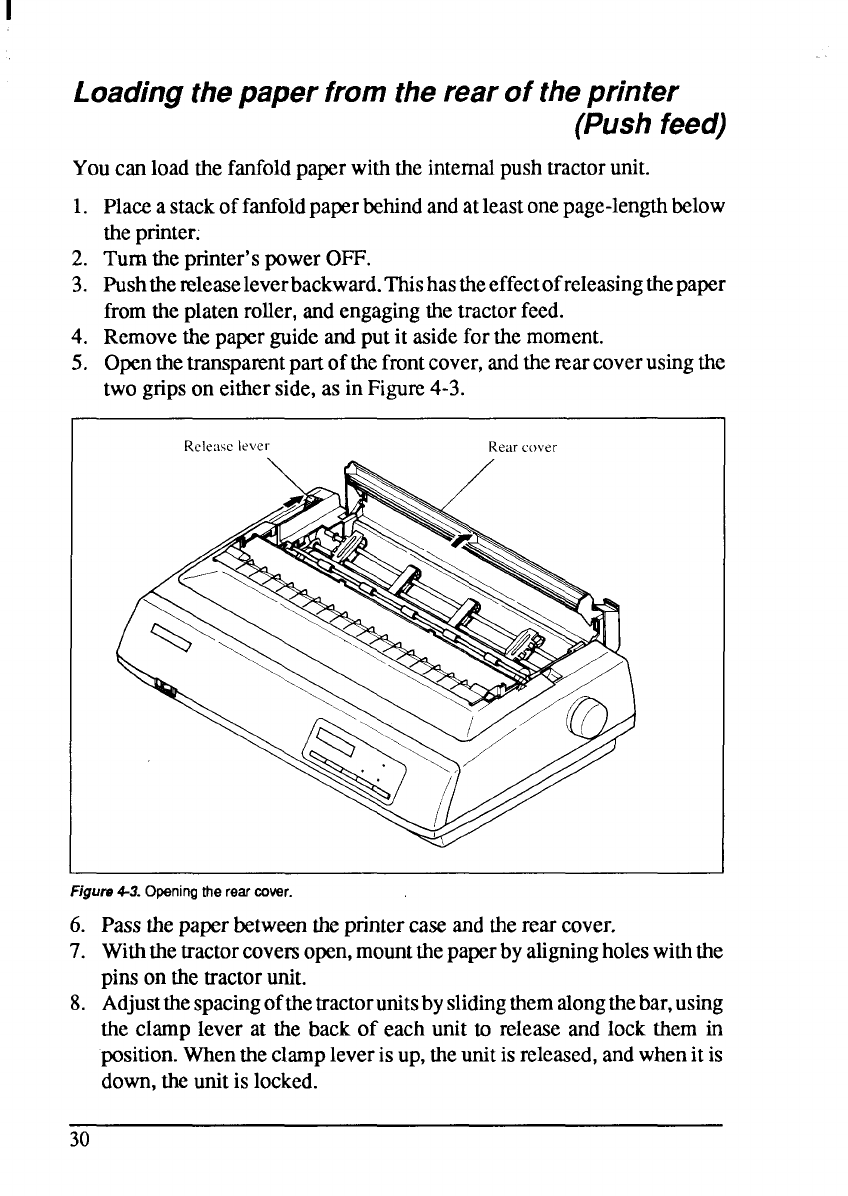

Loadingthepaper from therear of theprinter
(Pushfeed)
Youcan loadthefanfoldpaperwiththeinternalpushtractorunit.
1.
2.
3.
4.
5.
Placeastackoffanfoldpaperbehindandatleastonepage-lengthbelow
theprinter.
Turntheprinter’spowerOFF.
Pushthereleaseleverbackward.Thishastheeffectofreleasingthepaper
fromtheplatenroller,andengagingthetractorfeed.
Removethepaperguideandputit asideforthemoment.
Openthetransparentpartofthefrontcover,andtherearcoverusingthe
two gripson eithers;de,as inFigure4-3.
[
Releaselever Rearco~er
1
Figwu 4-3. Openingthe rearcover.
6. Passthepaperbetweentheprintercaseandtherearcover,
7. Withthetractorcoversopen,mountthepaperby aligningholeswiththe
pinsonthetractorunit.
8. Adjustthespacingofthetractorunitsbyslidingthemalongthebar,using
the clamp lever at the back of each unit to releaseand lock them in
position.Whentheclampleverisup,theunitisreleased,andwhenit is
down,theunitislocked.
30
