100 Functional information Q1860-90918

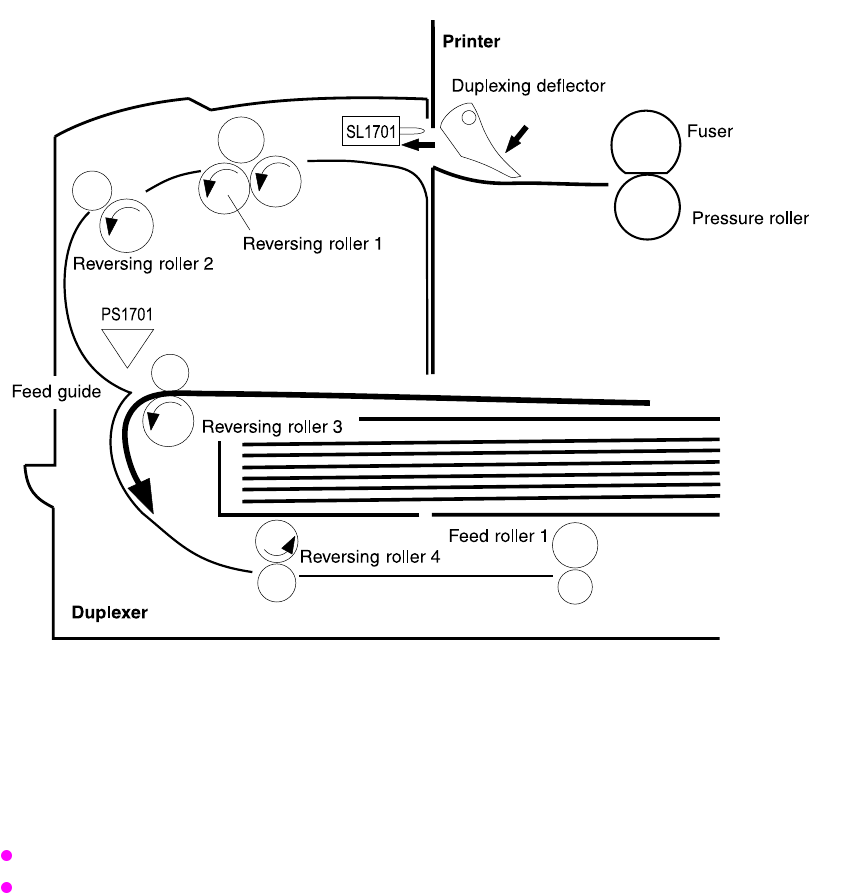

Figure 32. Duplexer
Paper jam in the duplexer
The following sensors are located to detect the presence of paper and to determine whether the
paper is correctly fed.
reversing unit paper sensor (PS1701)
refeed paper sensor (PS1703)
If the paper does not reach or pass through any of the sensors within the specified period of time,
the microprocessor (CPU) on the dc controller PCA notifies the formatter of a 13.x paper jam.
