Q1860-90918 6 Removing and replacing parts 173
Paper-size spring assembly
1 Complete steps 1 through 6 of the feeder control PCA removal procedure (see page 171).
2 Turn the feeder assembly over so that it is face-up on the work surface.
3 Remove the two screws (callout 1) that secure the paper size switch PCA to the frame.

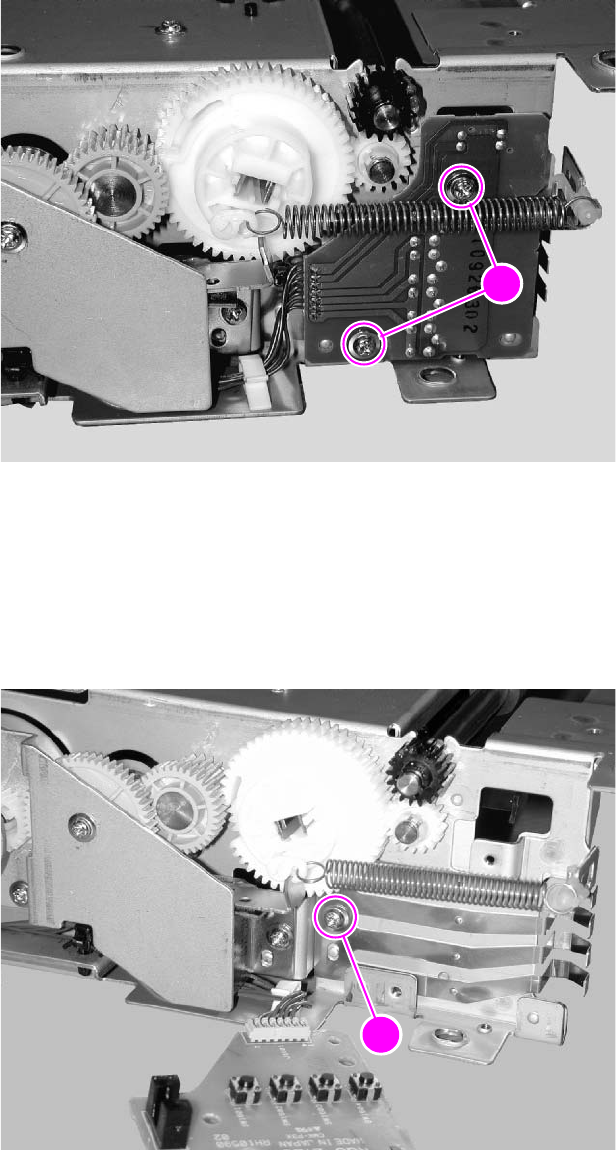

Figure 109. Optional 250-sheet feeder paper-size spring assembly removal (1 of 2)
4 Carefully lower the PCA down to the work surface to gain access to the paper-size spring
assembly.
5 Remove the screw (callout 2) that secures the paper-size spring to the frame and lift the
spring from the frame.
Figure 110. Optional 250-sheet feeder paper-size spring assembly removal (2 of 2)
2
1
2
2
